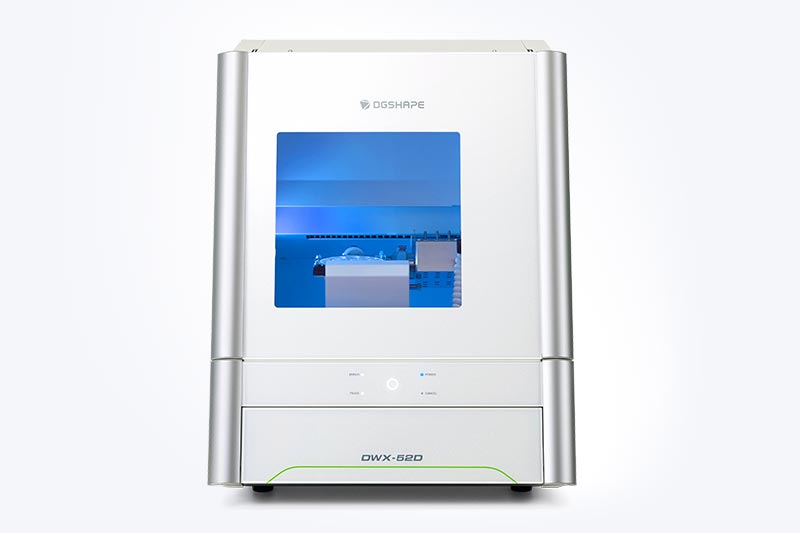

DWX-52D close up

DWX-52D Features

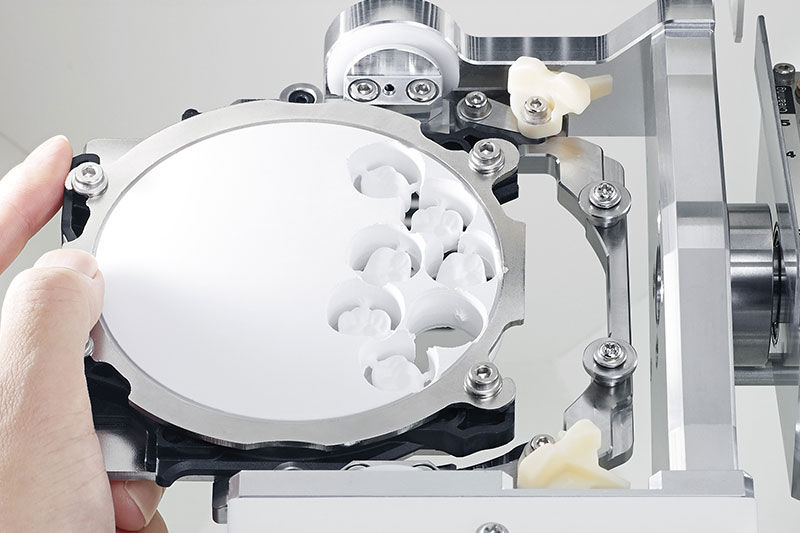

Clamp on System DWX-52D


Efficient Milling Set-Up

A new snap-in clamp disc changing system with six included material adapters offers a fast and secure set-up—eliminating mounting errors and minimising damage during disc insertion. With the snap-in clamp system, reinserted material adaptors keep discs indexed to their original position for production that requires secondary milling or two-stage processing. In addition, the DWX-52D features built-in storage drawers and an included disc adapter rack to ensure a highly organised and efficient workspace.

The snap-in system enables multi-device adapter integration. The same material adapters can be milled on both the DWX-52D and DWX-52DCi for a convenient and scalable milling solution.

ATC Ico

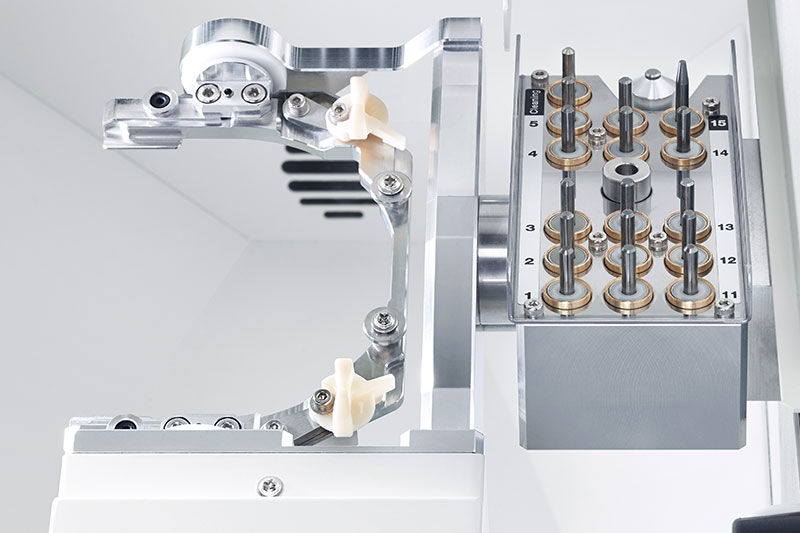

Increased Milling Capabilities

The DWX-52D provides continuous milling with a 15-station Automatic Tool Changer (ATC) and auto-adjusted air pressure that automatically switches to the right air volume in response to the CAM software material data. Other enhanced features include automatic dust collection when opening the front cover to keep dust way from your lab surfaces and to support a clean and healthy environment.

dwx-52d v-panel

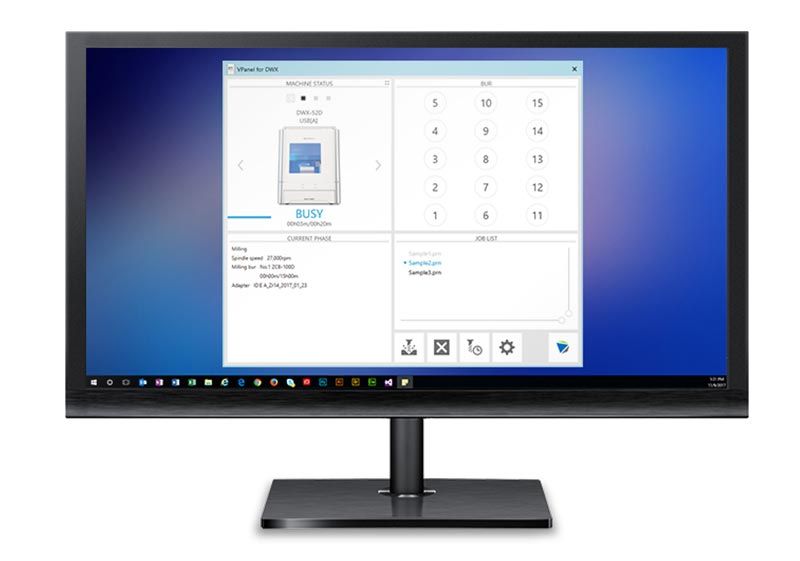

Intelligent Tool Changer

A feature of the simplified VPanel operation is an ITC function that instinctively swaps out tools directly from their position when they have reached their user-defined lifespan with a designated “partner tool” without needing to pause production. The ITC has been updated for the DWX-52D to allow for user-defined setup– users can now assign burs in any figuration they want in the Automatic Tool Changer (ATC).

dwx-52d v-panel

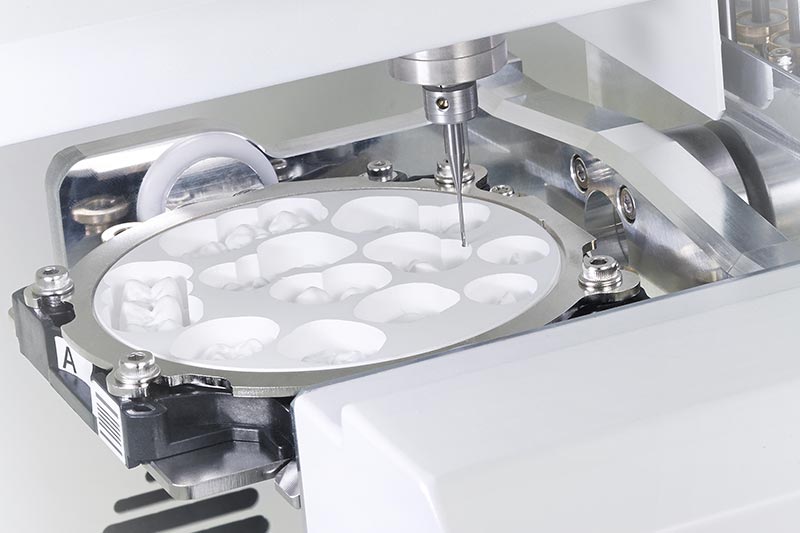

5-axis Milling

5-Axis Milling

A smooth and steady ball screw-driven system produces exceptional results. The DWX-52D simultaneously rotates and tilts discs for deep undercuts— milling large arch restorations and other full-mouth prosthetics with ease.

close up

Spindle ico

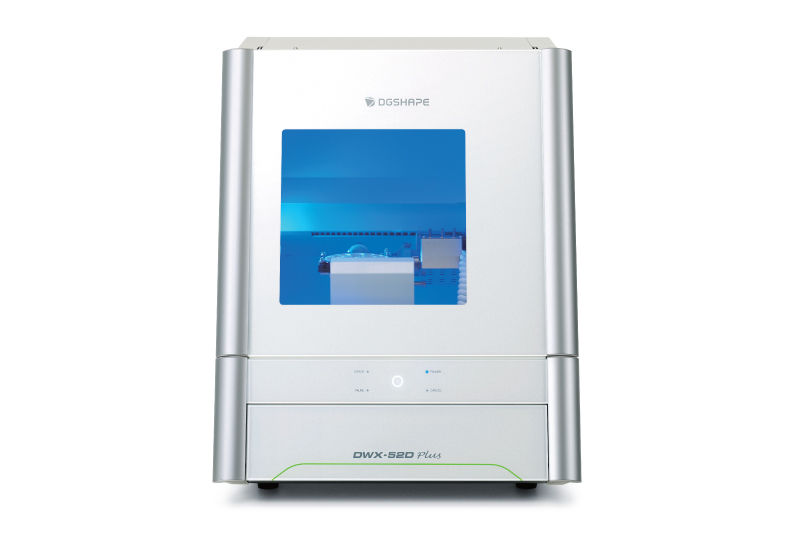

User Replaceable Spindle

The DWX-52D features a spindle that can be replaced in a matter of minutes, without needing to call out a technician. No special tools, testing or training is required.

Optional CAM Software

CIMsystem MillBox Roland Edition is the dental CAM Software solution developed specifically for DGSHAPE Dental Milling Machines.

Equipped with a simple to follow user interface that is both innovative and appealing, MillBox simplifies the nesting and toolpath creation. The MillBox Interface was specifically developed for immediate use, with exciting new features that allow you to work even faster.

Specially designed for professionals who require simple and reliable tools, MillBox provides high performance in less time to get the work you want processed in a few simple steps.

Optional BOFA Dust Extraction System

You will need a dust extraction (vacuum) system with this machine.

Make sure to get one that meets the following conditions:

Static Pressure: 4 kPa or more
Air Quantity: 2 m3/min or more

Use the supplied dust collection hose to connect to your system. You should clean your dust collector and replace your filters regularly.

For more information, visit BOFA International.

A Clean, Precise and Flexible Milling Solution

Simplified Operation

The DWX-52D replaces the complicated controls associated with CNC milling with an intuitive Virtual Machine Panel (VPanel) that automatically swaps out used burs (ITC function), conducts machine diagnostics, and provides one-touch device calibration.

Automatic Cleaning

Load the included brush tool into the Automatic Tool Changer (ATC) and set-it-up to automatically sweep away zirconia dust and other debris for a cleaner milling surface. The DWX-52D also features an internal auto-start dust collection system to maintain a clean machine, and an ionizer to reduce static when milling PMMA.

Open Architecture

The DWX-52D doesn’t tie users to a specific software or proprietary control source. Users have the freedom to work with their choice of the latest CAD/CAM software, scanners and materials.


*Contact your DGSHAPE authorised dealer for the open architecture set-up that’s right for you.

Optional Accessories to Optimise Production

Keep materials organised and ready for production with an included disk adapter rack
Included pin adapter for holding up to eight pin-type blocks
Add additional adapters for a quicker set-up and a well-organised workflow
Optional carbide, diamond and hybrid milling tools (0.3mm, 0.6mm, 1.0mm, 2.0mm, 3.0mm)
Clear away material waste during milling with optional BOFA DustPro vacuum unit
dwx-52d background

Highest Clinical Standards

Made in Japan as a Class I medical device, the DWX-52D is crafted with meticulous build quality and in accordance with the highest industrial standards, offers users added assurance should any medical compliance laws change.

Warranty and Support

DGSHAPE ensures that your machine is always up-and-running with a three-year warranty plus support from a network of dedicated dealers and certified service engineers. From our helpful customer support team to an abundance of training and education, Roland DG cares about your customer needs before and after machine purchase.


by roland

Peace-of-Mind Reliability and Support

Roland DG has been at the forefront of advanced machine manufacturing for 30 years, providing practical and reliable technology with unmatched service and support.

DGSHAPE further delivers on this reliability promise but also improves user experience, making it incredibly easy for labs to produce high quality, cost effective dental prosthetics while improving workflow efficiencies.
