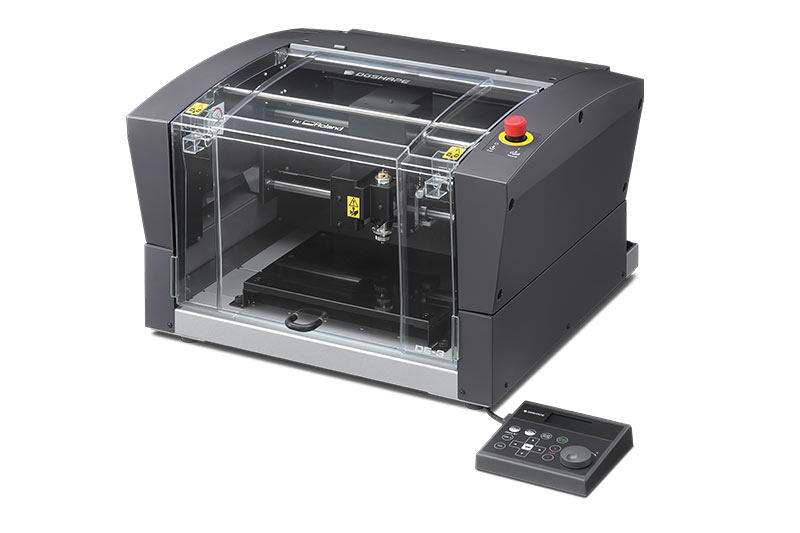

NEW DE-3 Desktop Engraver
RRP inc. GST
For 60 months inc. GSTRoland Rental

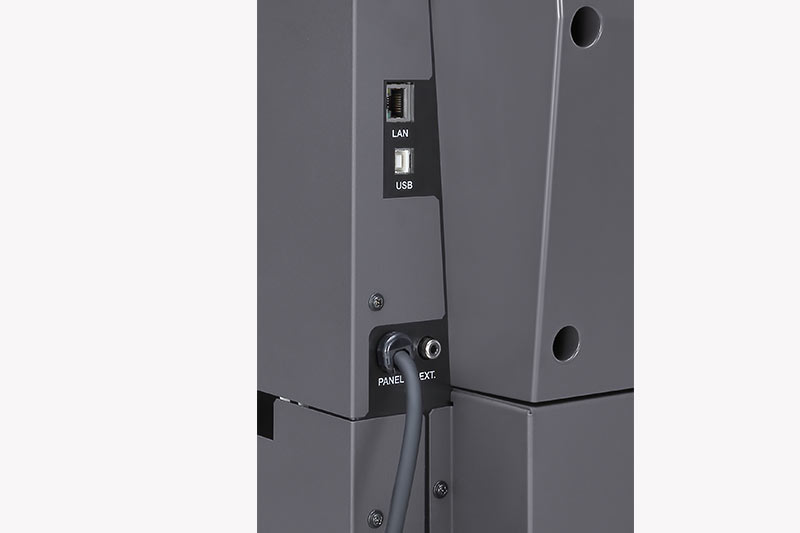

For over 30 years Roland has lead innovation in rotary engraving technology and continues to break new ground with the DE-3 DGSHAPE Engraver. Featuring laser-pointing technology, ethernet connectivity, automatic depth regulation and other intelligent enhancements, the DE3 is the smartest, most intuitive rotary engraver on the market.
Discover More Applications with DE-3 Engraving
Effortlessly scribe and engrave onto a huge range of giftware, signage, trophies, tools and industrial products. Personalise brass, aluminium, copper, engraving plastic, wooden items and more, with the speed, precision and ease of the powerfully compact DE-3.

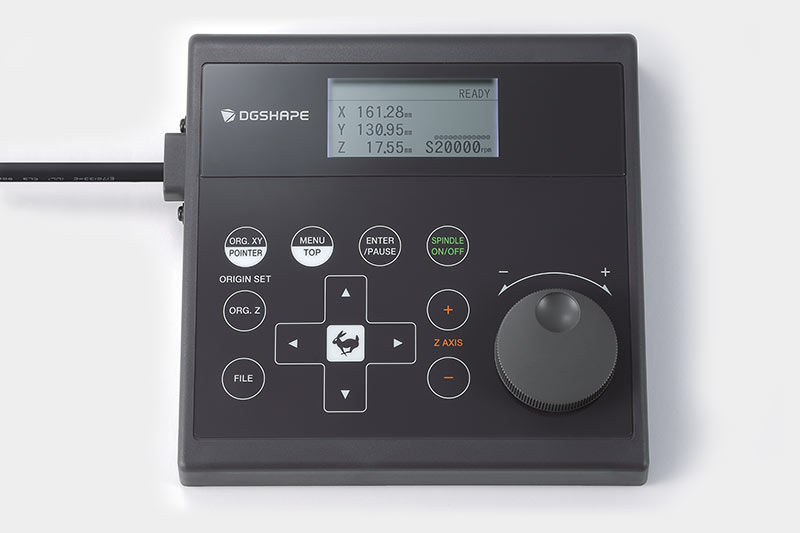

A laser pointer accurately defines the origin point and displays an engraving path preview on the media— set the engraving position at the touch-of-a-button for accurate personalisation every time.
Easily-applied nose cones can be added to the spindle unit to automatically regulate engraving depth on the media surface— avoiding scratches to delicate materials and delivering consistently precise results.
Fast and Easy Production
Powered by a 20,000 rpm DC brushless motor, the DE-3 utilises advanced surface detection and other automatic features to make set-up and engraving a quick and simple process.

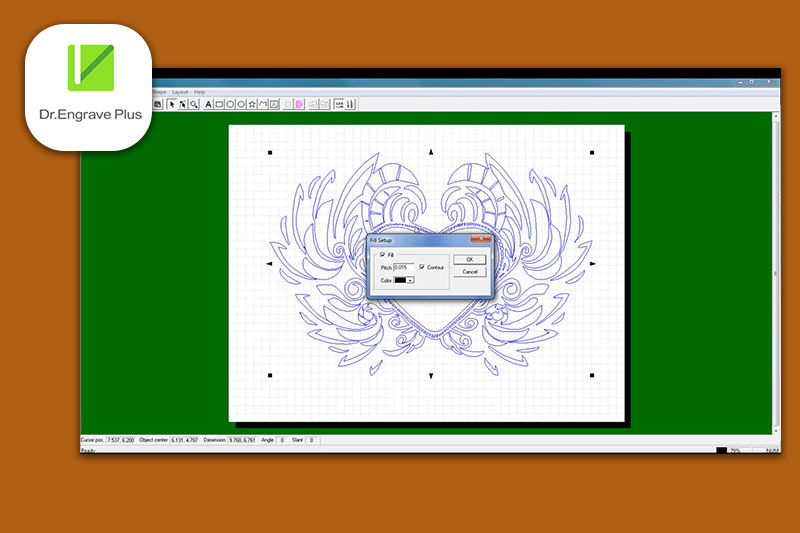

New Software and Open Architecture
The DE-3 is open source technology that works out-of-the-box with all popular engraving software, industry standard tools, and materials. Also included with purchase of the DE-3 is Dr. Engrave Plus software that offers new user advantages.
- Now supports AI files and standard graphic/vector data
- Newly added levelling and drilling functions enable standard text engraving as well as surface levelling and hole drilling
- Retains handy template functions and Excel and CSV databases for fast engraving of serial data jobs
|A desktop machine that performs like a production class engraver|
|Additional center vise available that holds objects up-to 5.9” (X) by 5.8” (Y) by 1.3” (Z)|
|Small footprint machine with an ample 12” by 9” work area fits comfortably into offices, classrooms and workshops|
|Offers a safe and clean engraving solution with a fully-enclosed engraving operation|
|Work Table Size||305mm x 230mm|
|Maximum Work Area (Work Envelope)||12”(X) x 9.1”(Y) x 1.6”(Z)
305 mm(X) x 230 mm (Y) x 40mm (Z)
|XYZ Axis Drive System||Stepper motor, 3-axis simultaneous control|
|Operating Speed||XY axis:||0.1 ～ 60 mm/sec.|
|Z axis:||0.1 ～ 30mm/sec.|
|Software Resolution||0.004” (0.01 mm) /step|
|Mechanical Resolution||XYZ-axis:|| 0.00125 mm/step
|Spindle Motor||Brushless DC Motor|
|Spindle Speed||5,000 ～ 20,000 rpm|
|Tool Loading||Cutter Holder, Collet Type|
|Maximum Material Thickness||40 mm（38 mm when using the nose cone）|
|Ethernet（10 BASE-T/100 BASE-TX）|
|Power Supply||Voltage and Frequency||AC100V ± 10%、50/60Hz（Overvoltage category: Category Ⅱ, IEC60664-1)|
|Rated Current||1.0 A|
|Power Consumption||80 W|
|Operating Noise||While Operating：||60 dB（or less)|
|Standby：||40 dB（or less)|
|External Dimensions||616mm × 587mm × 390mm|
|Machine Weight||35 kg|
|Installation Environment||Indoor use, altitude:||2000 m or less|
|Temperature||5 to 40 °C|
|Humidity||35 to 80% (no dew condensation)|
|Environment pollution degree:||2|
|Bundled Accessories||"Power cord, power adapter, USB cable, nose cone unit (resin / metal components), nose unit set screw (fixing screw, spring), spare set screw (for cutter holder) , Solid collet (∅ 3.175 mm), spanner wrench, hex wrench, hex driver, adhesive sheet, dust collector adapter, DGSHAPE Software Package CD, Setup Guide"|
Reliability and Support
As the world leader in desktop rotary engraving devices, Roland DG offers users unmatched product performance and reliability, backed by industry-leading service and support. The DE-3 comes with a three-year parts n' all warranty. As the world leader in desktop rotary engraving devices, DGSHAPE by Roland offers superior machine reliability, backed by the best service and support in the industry.
Roland DG’s international ISO certifications are a guarantee of exceptional quality.
