BY-20 A Fresh Way to Make an Impact

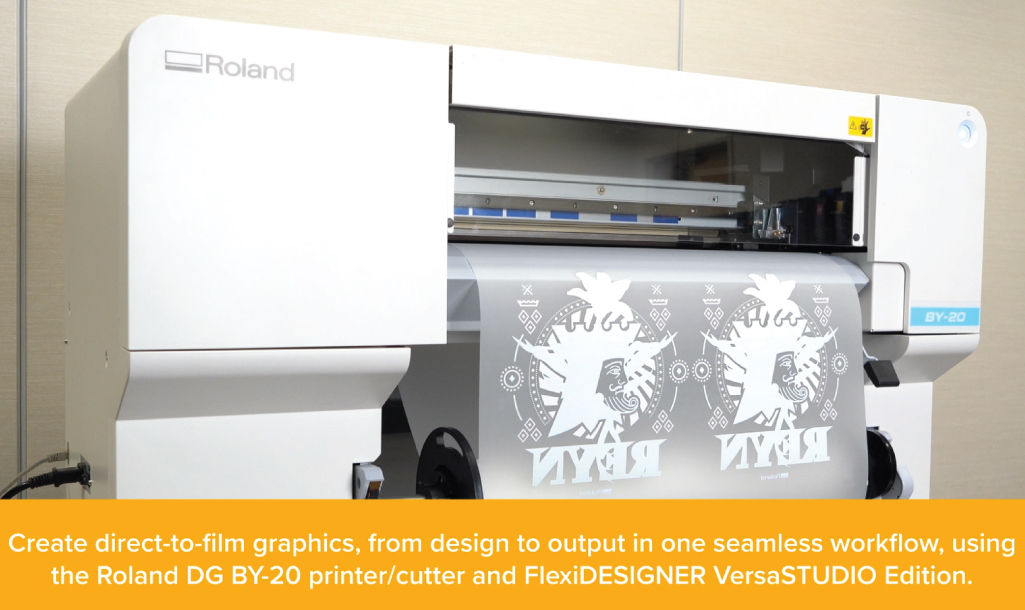

NEW VersaSTUDIO BY-20 Desktop Direct-to-Film Printer

  • BY-20

    LIST PRICE

    AU $12,870


    RRP inc. GST

  • BY-20

    RENTAL PRICE

    AU $302 / Month


    For 60 months inc. GST

    Roland Rental

The all-new VersaSTUDIO BY-20 is the ultimate desktop direct-to-film printer…and more. Simple to use, reliable and efficient, the BY-20 makes decorating apparel and accessories with vibrant, detailed graphics quick and easy – even for those with no prior printing experience. Plus, with the BY-20’s integrated contour-cutting functionality, you can also produce heat transfer graphics from PVC sheets – all with a single, affordable compact device.

  • Easy-to-use, compact, affordable DTF printer for those who want to start an apparel business, or for existing DTF users seeking to expand their current product offerings
  • Prints vibrant, detailed DTF graphics that can be transferred to a wide variety of fabrics with no weeding required
  • The only desktop DTF printer with sheet cut and contour-cutting capabilities – can also be used for traditional print and cut applications
  • Optimised print modes for improved productivity
  • Integrates with popular DTF powder shaker and heater units for an automated system

Find a Dealer Enquire Now

Create Customised Apparel & Accessories with
One Compact, Easy-to-Use Device

The VersaSTUDIO BY-20 is a highly versatile desktop device ideal for a range of direct-to-film apparel applications, such as creating custom T-shirts, sportswear, tote bags, and more. You can also use the BY-20’s integrated contour cutting capabilities to produce jersey numbers and other heat transfer graphics.
Here are some examples:

T-Shirts
Sportswear
Aprons
Tote Bags
Home Decor - Pillows
Jerseys

Direct-to-Film in Four Easy Steps

The BY-20 direct-to-film workflow is a quick and easy four-step process, with no weeding or masking required. Roland DG offers the printer, transfer film, powder, and inks (each sold separately) for a complete solution. Plus, the system integrates with popular DTF powder shaker and heater units for an automated system.

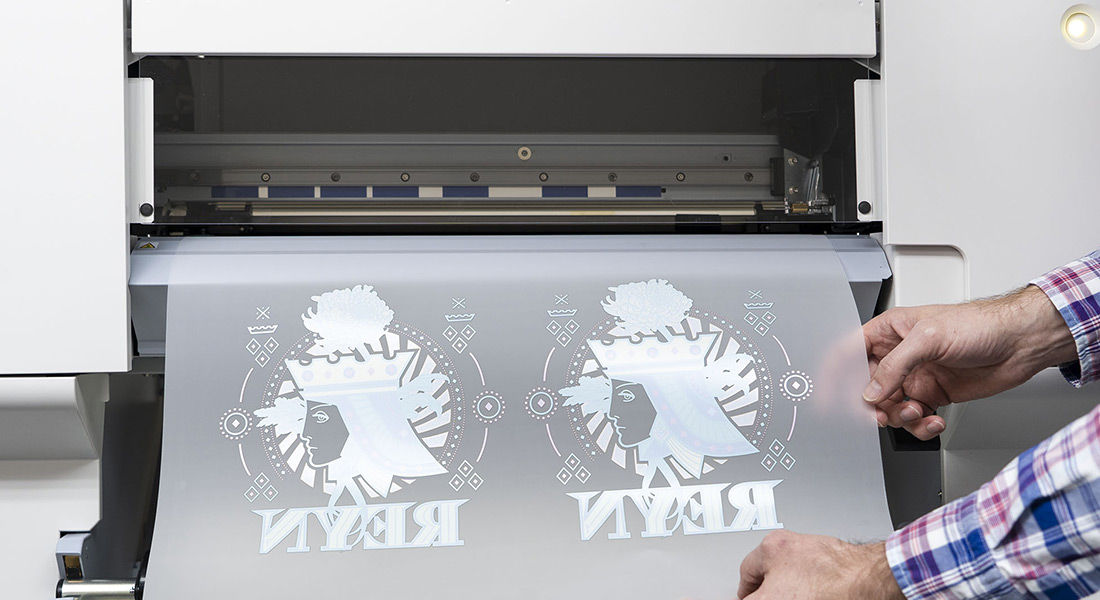

DTF Step 1

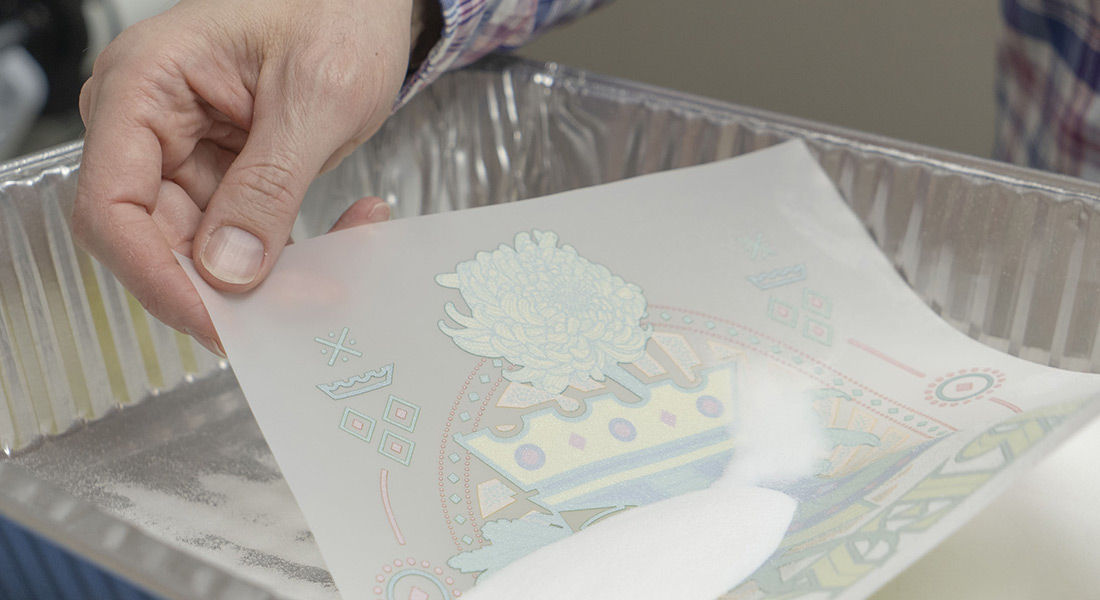

DTF Step 2

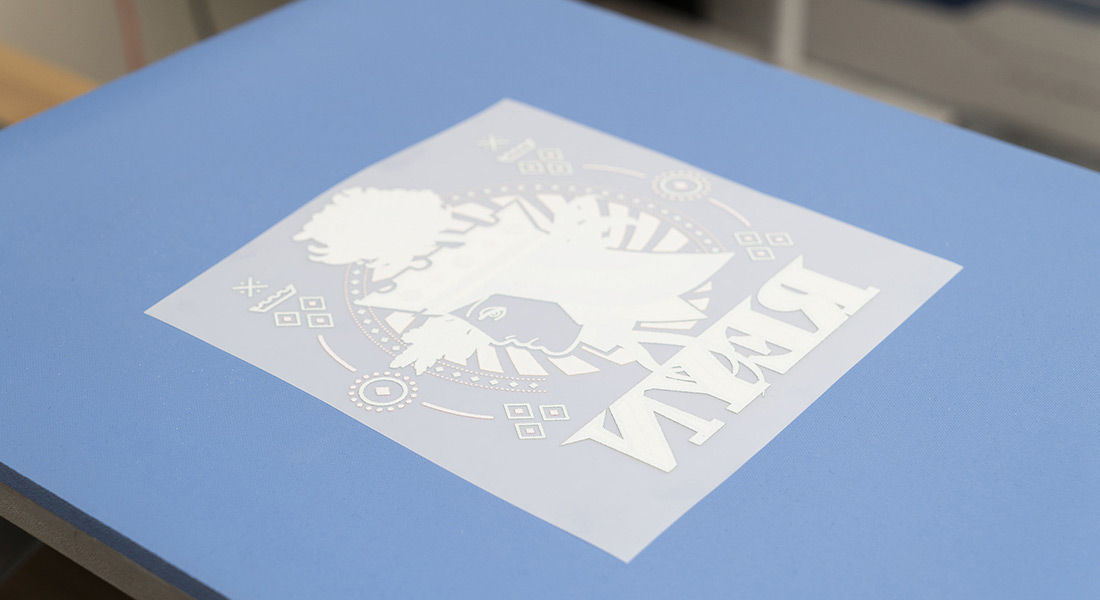

DTF Step 3

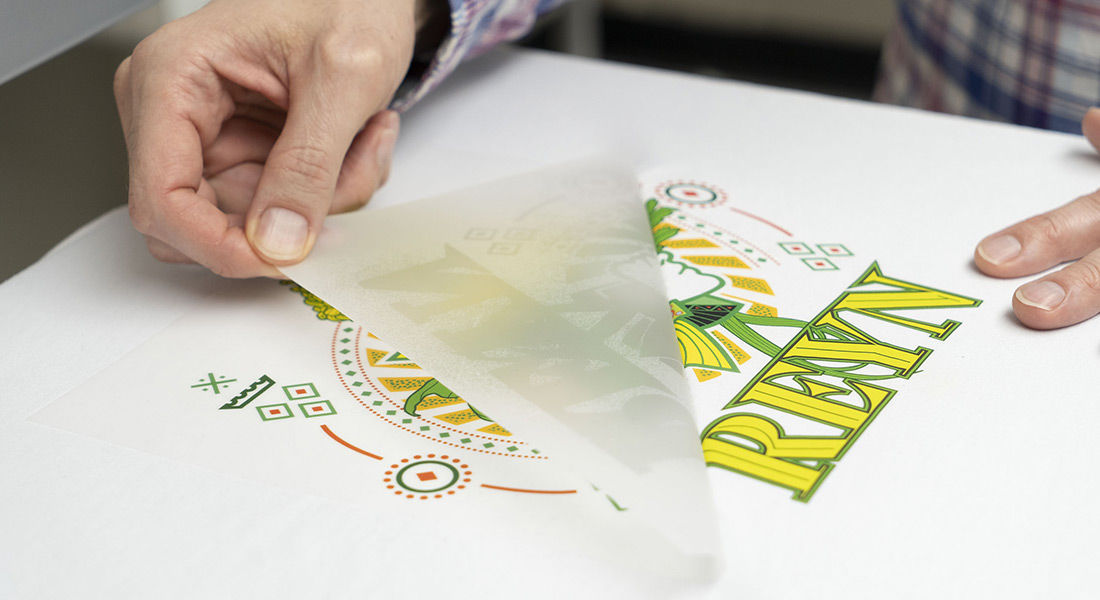

DTF Step 4
T-Shirt on Heat Press

Improves the Design and Efficiency of Apparel Decoration

With its user-friendly operation, fast print speeds, and intuitive software, the BY-20 direct-to-film system makes designing and creating customised apparel easier than ever. You can also transfer your BY-20-produced graphics to a wide variety of materials, including cotton, polyester, denim, nylon, rayon, and more.

Lady on Computer next to BY-20

Easy to Use, Even for Beginners

The BY-20 is so easy to use, even beginners can produce professional-quality output. After pressing the power button, all other operations – from printer setup and maintenance to sheet cutting – can be performed with the intuitive utility software. There’s even a support function that guides you through the various menu operations in an easy-to-understand manner.

Professional Quality

Professional Quality

The BY-20 consistently delivers quality results that professionals can rely on. That’s because it features the same advanced print technologies as Roland DG’s state-of-the-art wide-format printers. You can expect rich, colourful, high-definition output, print after print. Plus, the included design and output software provides all the features and tools you need to create stunning graphic quickly and easily.

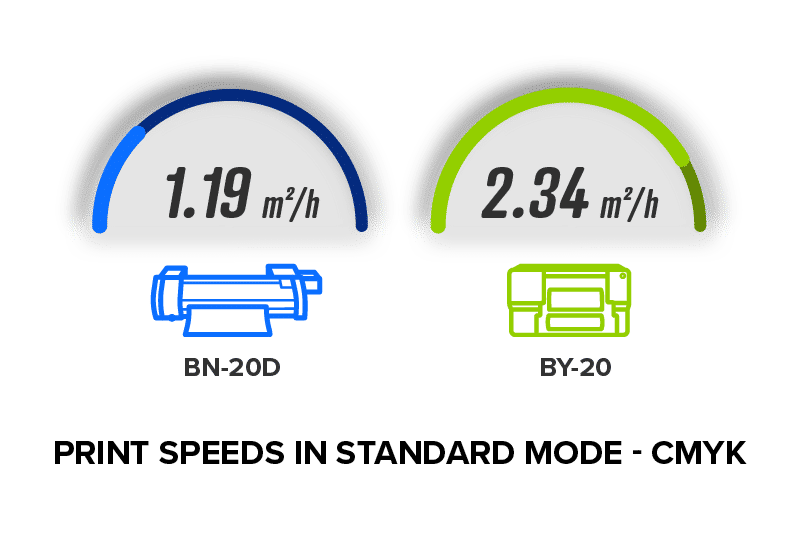

BY-20 Speeds

Efficient Production

Featuring print speeds twice as fast as previous models, the BY-20 offers an ideal workflow for DTF. You’ll be able to turn around jobs cost effectively and in a timely manner. A host of convenient user features, including front-loading media and ink systems, simplify workflow for maximum efficiency. Plus, the BY-20’s easy integration with popular DTF powder shaker and heater units allows for an automated system.

BY-20 Speeds

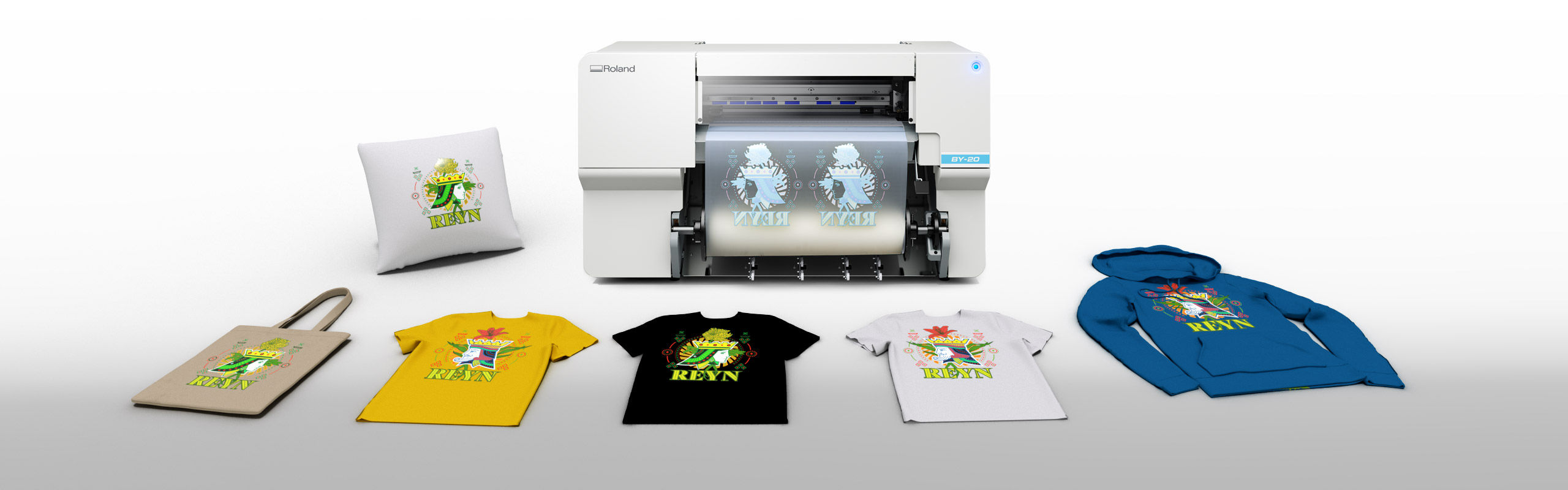

BY-20 Printer surrounded by applications

A Direct-to-Film Printer Tailor Made for You and Your Business

  Starter Price
The BY-20 is a professional-level printer that's priced to suit the budgets of those just getting started. It comes complete with design and output software, so you can get started printing right out of the box.
  Compact Size

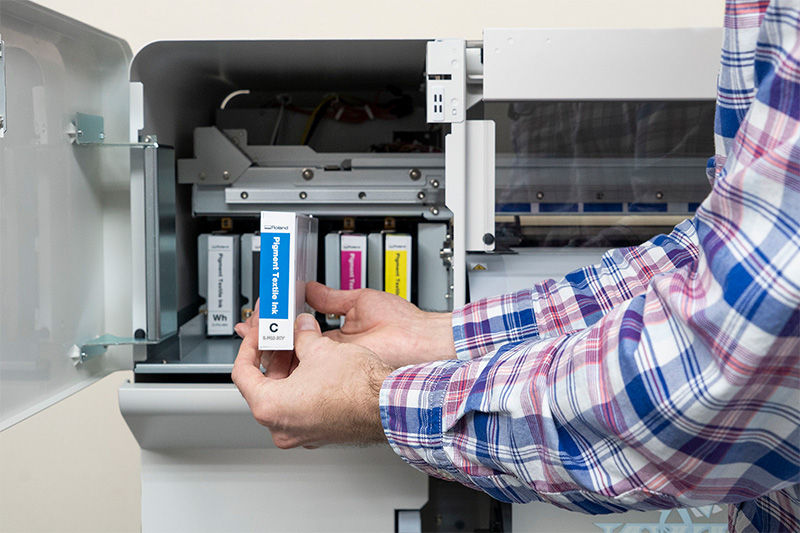

Small enough to fit on your desktop - the BY-20 is ideal for your home office or shop. In addition, media setup, ink loading and maintenance can be performed from the front of the printer, further reducing space requirements.
  Reliable, Durable, and Easy to Maintain
Reliability comes standard with the BY-20, so you can count on smooth, consistent performance. Easy-to-follow instructions and intuitive engineering make periodic maintenance and consumable replacement a breeze.
VersaSTUDIO Designer

Included FlexiDESIGNER VersaSTUDIO Edition Software

The BY-20’s included FlexiDESIGNER VersaSTUDIO Edition design and output software allows even those with little or no printing experience to consistently produce high-quality graphics. This feature-filled, intuitive software offers a host of tools for creating shapes, text, and effects, while also simplifying the print and cut workflow.

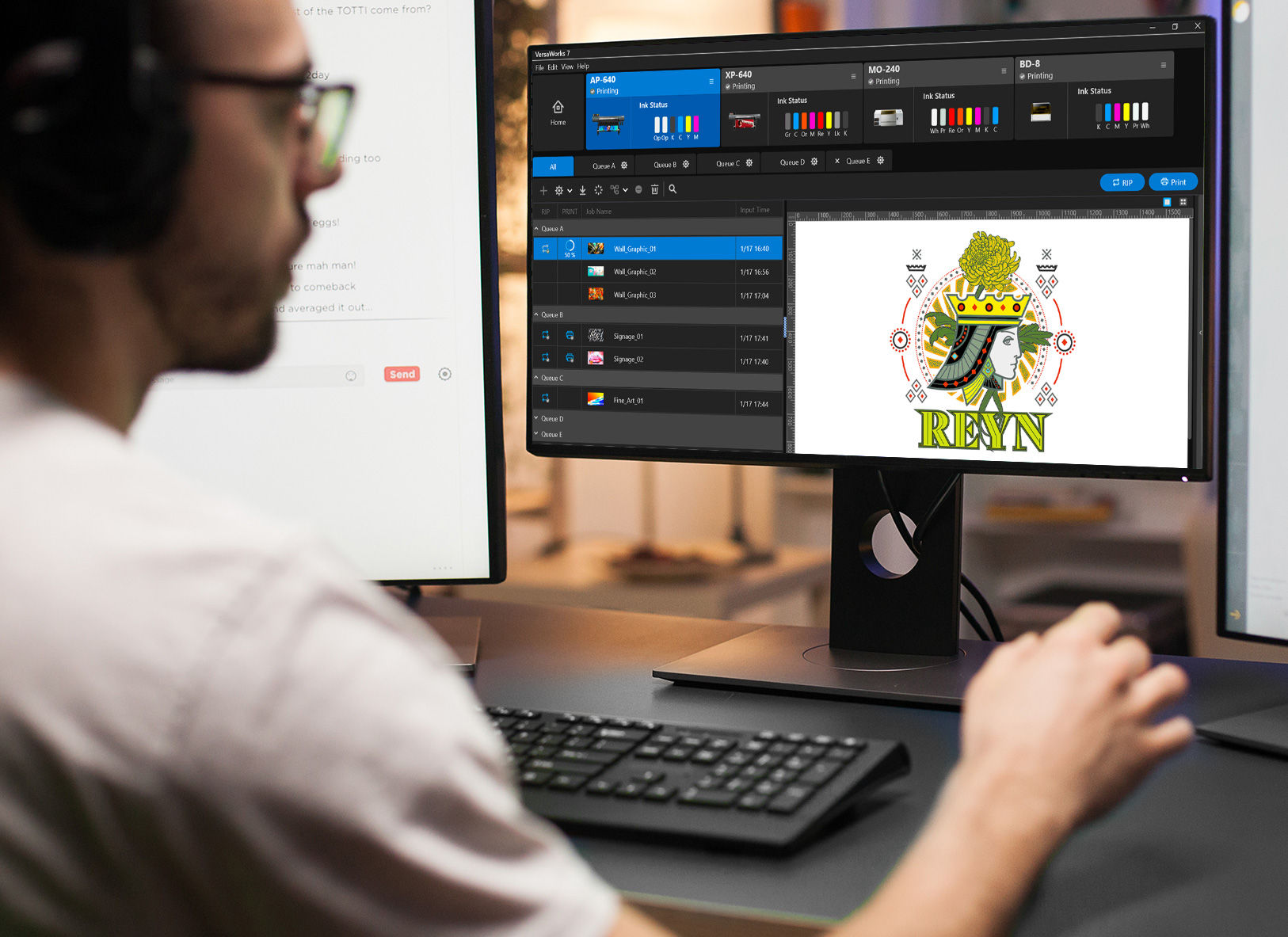

VersaWorks

Included VersaWorks 6 Output Software

For users looking for even greater control over output settings and capabilities, every BY-20 printer comes with powerful, simple-to-use VersaWorks 6 output software. VersaWorks 6 includes useful features that optimise quality and streamline processes for the printer, ink, and media. It also simplifies the setup of print layouts, generates cut lines for print and cut applications, and provides built-in colour management tools that make reproducing specific colours quick and easy.

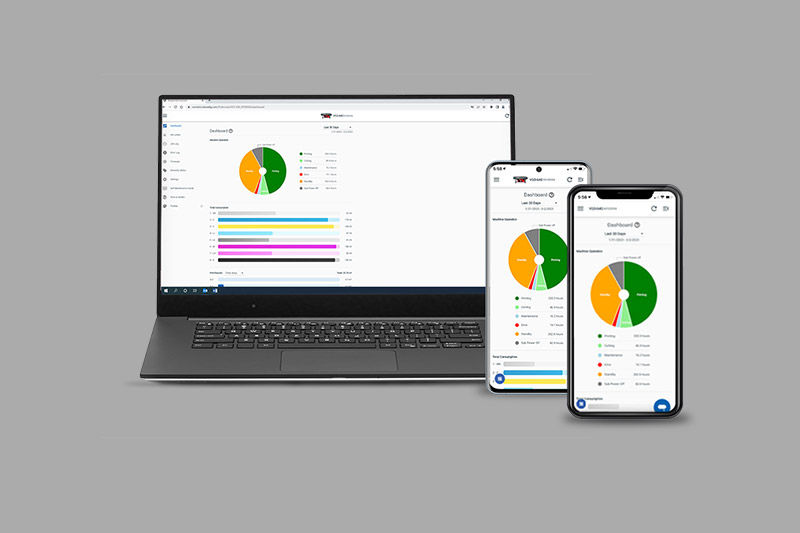

Roland DG Connect App

Roland DG Connect App For Everything Creative

Gain a detailed understanding of your entire print operation while keeping your device running at optimum performance with a user-friendly app specially designed to integrate seamlessly with your VersaSTUDIO BY-20. Reduce downtime and improve efficiency with a machine monitoring assistant that works in complete harmony with your device.

Additional Features

Simple Media Setup

Built-in functionality highly automates the media setup process, preparing the printer for varying material types and thicknesses, facilitating media loading, minimizing waste to reduce costs, and more.

Safe, Sustainable Production

BY-20 inks and powders are Oeko-Tex® ECO PASSPORT certified, guaranteeing the safety of textile products produced and providing assurance they do not contain harmful levels of toxic substances.

Utility Software

Provides intuitive and quick access to the items you want to use and comfortably supports operation from printer setup to maintenance and sheet cutting.

Integrates with Popular Shaker and Heater Units

The BY-20 direct-to-film printer can be easily integrated with popular shaker and heater units, for an automated DTF system.

Multi-Color LED Lights

LED lights indicate the printer’s status – such as “operating,” “temporarily on standby,” or “in error.” Even from a distance, the varying colours provide an update at a glance.

Ethernet Compatibility

The BY-20 is ethernet compatible. Print data can be sent and maintenance instructions can be given, even from remote locations within the same network.

Produce and Profit

The BY-20 desktop direct-to-film system lets you increase the value and appeal of T-shirts, hoodies, bags, and many other popular and profitable items by adding vibrant, customised graphics.

Numbers shown are estimates based on averages only and will vary by each job and use.

VersaSTUDIO
VersaSTUDIO

Expand Your Creative Possibilities

The VersaSTUDIO product family includes a range of affordable, intuitive desktop digital imaging devices that make it easy for anyone to produce what was previously achievable only by a limited number of professionals. VersaSTUDIO expands creative possibilities, so users can challenge the ordinary, start a business, expand their services, or simply learn digital manufacturing.
RolandDGCare
RolandDGCare

Roland DG’s Industry-Leading Warranty and Support

Every BY-20 also comes with Roland DG’s industry-best customer service and support as well as a One-Year Heads N' All Warranty. Your success is our success, so you can rest assured we’ll be with you every step of the way to make sure you are fully satisfied with the performance of your Roland DG device.

Additional Information

Expand All | Collapse All
VersaSTUDIO BY-20
BY-20
Printing Method Piezo ink-jet method
Media Width 5.91 to 20.2 in. (150 to 515 mm)
Thickness Maximum 39.3 mil (1.0 mm) with liner, for printing
Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
Roll outer diameter Maximum 5.9 in. (150 mm)
Roll weight Maximum 13.2 lb. (6 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1) Maximum 18.89 in. (480 mm)
Ink Type 220-ml cartridge
Colours Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch) Maximum 1,440 dpi
Cutting speed 0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2) 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Media heating system (*3) Print heater set temperature: 86 to 95 °F (30 to 35 °C)
Dryer set temperature: 86 to 100.4 °F (30 to 38 °C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated input 100-240 Va.c. 50/60 Hz 2.1 A
Power consumption During operation Approx. 185 W
Sleep mode Approx. 27W
Acoustic noise level During operation 62 dB (A) or less
During standby 60 dB (A) or less
Dimensions (Width x Depth x Height) 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight 137 lb. (62 kg)
Environment During operation (*4) Temperature: 68 to 89.6 °F (20 to 32 °C)
Humidity: 40 to 80 % RH (no condensation)
Not operating Temperature: 41 to 104 °F (5 to 40 °C)
Humidity: 20 to 80 % RH (no condensation)
Included items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.
*1 The length of printing or cutting is subject to the limitations of the program.
*2
  • 500 gf is the maximum instantaneous blade force.
  • The blade force must be adjusted according to details such as the media thickness.
*3 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
*4 Operating environment (Use in an operating environment within this range.)
Humidity vs Temperature
