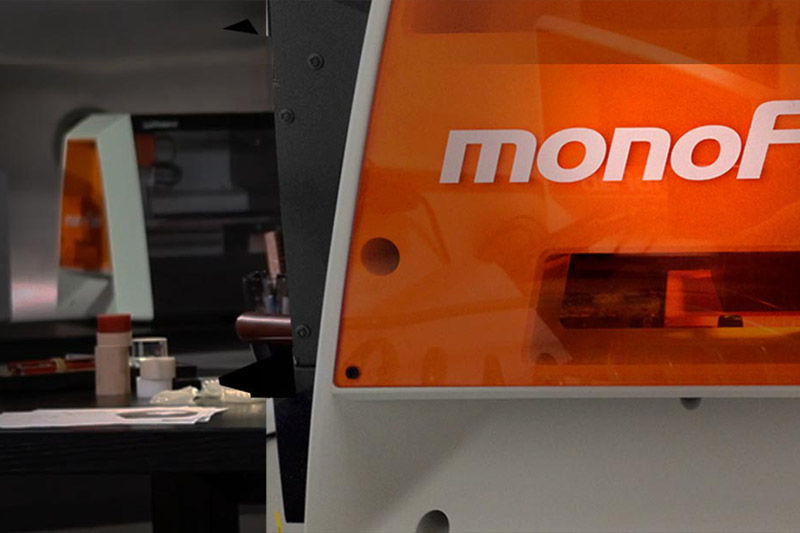

monoFab SRM-20 Compact Milling Machine

SRM-20 Compact Milling Machine Specifications

Cuttable Material Modeling Wax, Chemical Wood, Foam, Acrylic, Poly acetate, ABS, PC board
X, Y, and Z Operation Strokes 203.2 (X) x 152.4 (Y) x 60.5 (Z) mm,
8 (X) x 6 (Y) x 2.38 (Z) inches
Workpiece table size 232.2 (X) x 156.6 (Y) mm,
9.14 (X) x 6.17 (Y) inches
Distance From Collet Tip to Table Maximum, 130.75mm
(5.15 in)
Loadable Workpiece Weight 2kg (4.4 lbs)
X-, Y-, and Z-Axis Drive System Stepping motor
Operating Speed 6 – 1800mm/min,
0.24 – 70.87inch/min
Software Resolution 0.01 mm/step (RML-1), 0.001mm/step (NC code),
0.000039 inches/step (RML-1), 0.000039 inches/step (NC code)
Mechanical Resolution 0.000998594 mm/step,
0.0000393 inches/step
Spindle Motor DC motor Type 380
Spindle Rotation Speed Adjustable 3,000 – 7,000 rpm
Cutting Tool Chuck Collet method
Interface USB
Control Command Sets RML-1, NC code
Power Requirements Machine: DC24V, 2.5A,
Dedicated AC adapter: AC 100-240V ±10%, 50/60Hz
Power Consumption Approx. 50W
Operating Noise During operation: 65 dB (A) or less (when not cutting),
during standby: 45 dB (A) or less
External Dimensions 451.0 (W) x 426.6 (D) x 426.2 (H) mm,
17.76 (W) x 16.80 (D) x 16.78 (H) inches
Weight 19.6 kg, 43.2 lbs
Installation Environment Temperature of 5 to 40°C (41 to 104 °F),
35 to 80% relative humidity (no condensation)
Included Items USB cable, AC adapter, Power cord, Cutting tool, Collet, Set
screw, Spanners (7,10mm / 0.28, 0.39 inches), Hexagonal
wrench (size 2,3 mm / 0.059, 0.12 inches), Positioning pins,
Double-sided tape, Start-up page guidance card

System Requirements
Operating system (OS) Windows 7/8/8.1 (32-bit/64-bit edition)*
CPU Intel® Core 2 Duo or more (Core i5 or more recommended)
Memory (RAM) 1GB (2GB or more recommended)
Video card and monitor A resolution of 1,280x1,024 or more recommended
Free hard-disk space required
as a working space
100 megabytes or more recommende
Other requirements Internet connection and web browser,
Internet Explorer version 10 or more recommended
