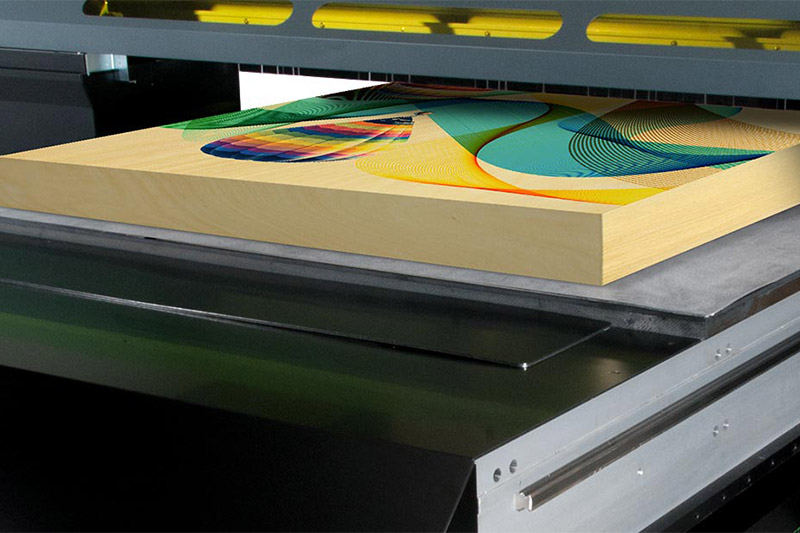

VersaUV LEJ-640FT flatbed UV printer

VersaUV LEJ-640FT Flatbed UV Printer Specifications

Model LEJ-640FT
Printing technology Piezoelectric inkjet
Acceptable media Width and length 1625mm x 2490mm (64 in x 98 in)
Thickness Maximum 152mm (6 in)
Weight Maximum 100 kg (220 lbs)
Printing area Maximum 1600 mm x 2439 mm (63 in x 96 in)
Maximum printing speed 12 sqmtr/hr in CMYK High Speed mode
Ink cartridge Type ECO-UV or ECO-UV S inks
Capacity 220 ml or 500 ml (± 5 ml)
Colour ECO-UV: 6 colours (Cyan, Magenta, Yellow, Black, White and Gloss),
ECO-UV S: 5 colours (Cyan, Magenta, Yellow, Black and White)
Configuration ECO-UV: CMYK+White+Clear, CMYK+White+White or CMYK+Clear+Clear, ECO-UV S: CMYK+White+White
Ink curing unit Dual UV LED Lamps
Printing resolutions 360x720 dpi, 540x720 dpi, 720x1080 dpi, 720x1440 dpi, 1440x1440 dpi
Distance accuracy Error of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater.
Interface Ethernet (10 BASE-T / 100 BASE-TX, automatic switching)
Power supply Voltage and frequency AC 220 V ± 10%, 50/60 Hz
Required power capacity Maximum 30 A
Power consumption Maximum 3.0kVA
Dimensions 3200[W] x 3734[D] x 1207[H] mm (126[W] x 147[D] x 47.5[H] in)
Weight 1185 kg (2612 lb.)
Environment Power on Temperature: 20° to 32°C (68° to 90°F) (22°C [72°F] or more recommended) / Humidity: 35 to 80% (no condensation)
Power off Temperature: 5° to 40°C (41° to 104°F) / Humidity: 20 to 80% (no condensation)
Included items Cleaning kit, Roland VersaWorks software RIP, User's manual, etc.

Specifications subject to change.
