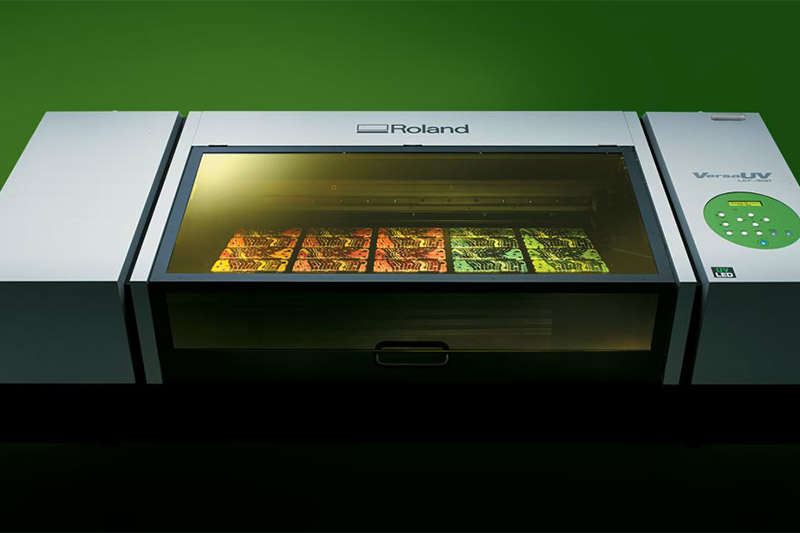

VersaUV LEF-300 flatbed printer

VersaUV LEF-300 Benchtop UV Printer Features

Advanced ECO-UV Inks for Outstanding Results

Designed for flexibility, ECO-UV inks image beautifully and conform around the most complex corners and curves, allowing users to customise everything from gifts and novelties to industrial parts and product prototypes.

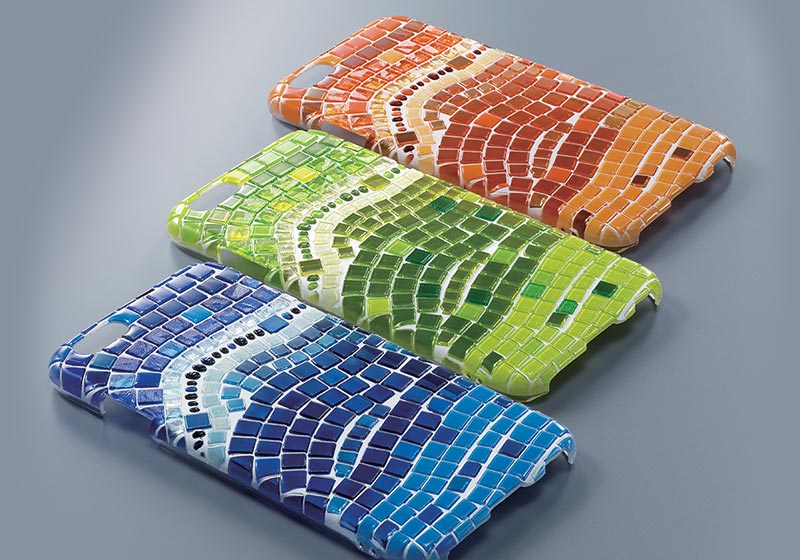

Raised ink design on phone case printed on an LEF-300.

Create Textures and Embossing Effects with Gloss Ink.

ECO-UV ink options include high-density white ink for greater brilliance on clear or dark-coloured materials and Gloss ink for gloss and matte finishes. Multiple layers of clear ink can be applied to simulate embossing and 3D textures, and the included VersaWorks Dual RIP software comes with 72 ready-to-use texture patterns.
VersaUV LEF-300 Input/Output system

Built to Meet High-Volume Demand

VersaUV LEF-300 Input/Output system

In order to maintain accurate high-quality printing, even during long production runs, the LEF-300 Benchtop UV Printer incorporates precision parts that are not susceptible to changes in temperature or humidity. To meet the needs of high-volume production and manufacturing facilities, the LEF-300 also includes an input/output system for integrating machine status lights and other assembly line tools – enabling scalable production with multiple LEF-300 devices.

VersaUV LEF-300 Benchtop UV Flatbed Printer

Built-in Vacuum Table for Quick and Easy Set-up

A built-in vacuum table on the LEF-300 holds materials steady for easy loading and printing. It allows users to quickly and accurately place flexible materials on the print bed to reduce set-up time, prevent material shifting and avoid costly printing errors.

VersaUV LEF-300 Benchtop UV Flatbed Printer

Automatic Height Adjustor

When printing on 3D items, the LEF-300 features a height adjuster that automatically moves the flatbed printer table back and forth until it reaches the required height. This automatic function also ensures quality print production by maintaining an optimum distance between the print head and the material surface.

VersaUV LEF-300 Flatbed Printer

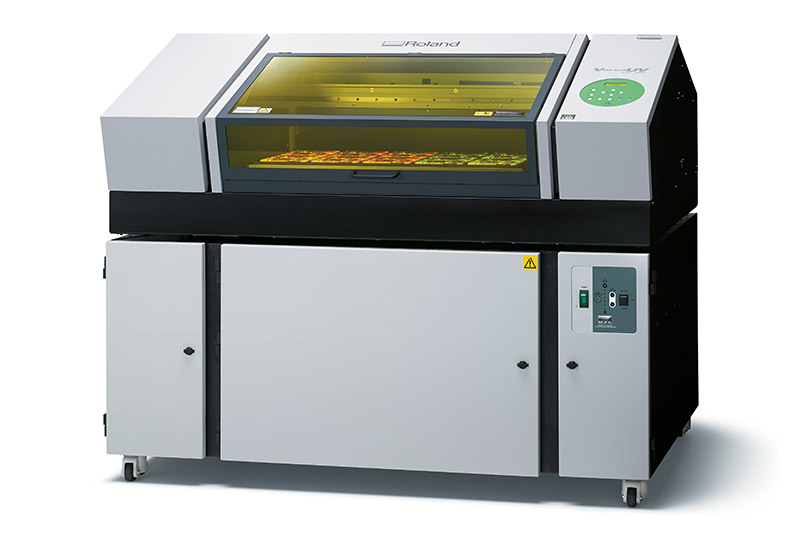

Optional BOFA Air Filtration Unit

Custom built for the LEF series, an optional air filtration system is available from Roland. While ensuring proper ventilation, this unit also doubles as a stand and storage unit for jigs, fixtures and supplies. When connected to the stand, the Roland air filtration system virtually eliminates odor. The VersaUV LEF is ventilation-ready, featuring a built-in connector for the Roland unit or other standard air filtration systems.

VersaUV LEF-300 Flatbed Printer

Rotaprint

Printing white and CMYK onto bottles and cylindrical objects is an absolute snap with the new RotaPrint attachment for the VersaUV LEF-300 flatbed printer. Simple to install and remove, it utilises the LEF-300’s existing feed system and enables the LEF to print cleanly and precisely onto a wide range of materials with a diameter between 40mm to 77mm.

With its sturdy build, RotaPrint is also consistently and reliably accurate, ensuring precise stepping during rotation.

Keeping Mist Away for Better Print Consistency

The LEF-300 features an ink mist absorption system that collects and removes airborne ink mist inside the printer, a fan installed around the print head, blows ink mist into an adsorbing filter to maintain a consistent printing operation.

Roland Intelligent Pass Control

Unmatched Print Quality with Roland Intelligent Pass Control

Roland Intelligent Pass Control

Across a wide variety of applications and media, Roland Intelligent Pass Control technology delivers outstanding image quality in all print modes while eliminating virtually any signs of banding. This patent-pending system ensures that graphics look great when viewed indoors or outdoors, up close and at a distance.

LEF UV canvas print

Automated Ink Circulation for Consistent Image Quality on Long Runs

The VersaUV series comes with Roland DG's unique, automated ink circulation system that prevents the pigment in white ink from settling. This system automatically reduces waste of white ink, lowers running costs, produces exceptional image quality, and ensures consistent white density throughout the longest production runs.

Roland OnSupport for Remotely Managing Your Printer

The LEF-300 features Roland OnSupport, an online customer support system that allows users to remotely track the printer status and send emails to users notifying them when a job is completed or when ink is running low. Users can download firmware updates and important product information at an exclusive website in just one click.
