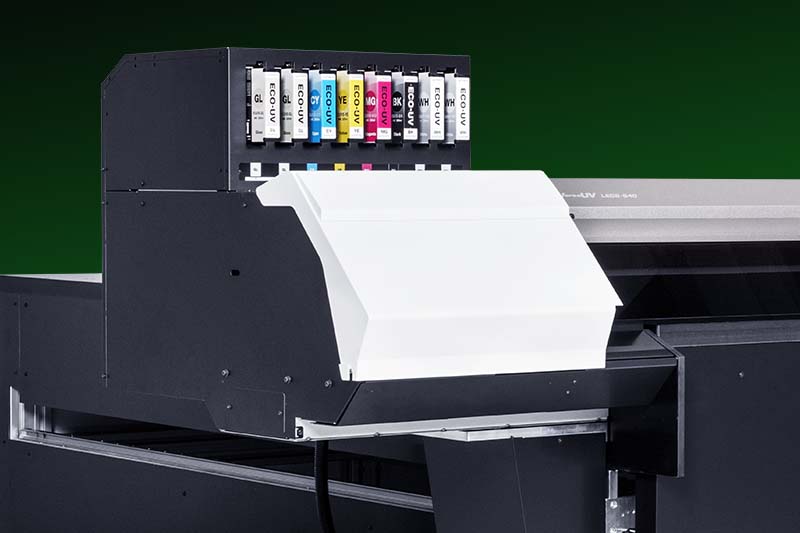

LEC2 S Inks and Accessories

VersaUV LEC2 S-Series UV Printers | Specifications

Model LEC2-330S-F200 Flatbed
LEC2-640S-F200 Flatbed
LEC2-640S-F300 Flatbed
LEC2-640S-F400 Flatbed
Printing method Piezo ink-jet
Acceptable media Width 762 mm 1625 mm 1625 mm 1625 mm
Thickness/height 0.01 to 200mm
Weight bed 100 kg / m2  100 kg / m2   100 kg / m2  100 kg / m2
Bed size 820 (W) x 2049 (D) mm 1690 (W) x 2049 (D) mm 1696 (W) x 3090 (D) mm 1690 (W) x 3574 (D) mm
Printing size*1 736 (W) x 1500 (L) x 200 (H) mm 1604 (W) x 1500 (L) x 200 (H) mm 1604 (W) x 2500 (L) x 200(H) mm 1604 (W) x 3050(L) x 200(H) mm
Ink cartridges Type Roland ECO-UV EUV-5
Colours Cyan, Magenta, Yellow, Black, Orange, Red, White, Gloss, Primer
Vacuum system Vacuum zones 1 1 2 2
Printing resolution (dpi) Max. 1440 dpi
Movement method High resolution stepping motor
Distance accuracy *2 Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater
Horizontal repeat accuracy *3 ±0.01mm
Output modes Continuous, unload, return to origin, layered
Media height setting Manual, auto sensor
Surface control Manual, auto sensor
Control interface (Tower) 7" Colour LCD touch screen
Interface Ethernet Base 10/100
Power saving function Automatic sleep feature
Power requirements 230V 16A 2P+E 230V 16A 2P+E 230V 16A 2P+E
230V 16A 2P+E
Power consumption Print with 100% vacuum Max. 1.45 kw Max. 1.45 kw Max. 2.65 kw Max. 2.65 kw
Sleep mode 0.08 kw  0.08 kw 0.08 kw   0.08 kw
Acoustic noise level Print with vacuum <70 db
During standby <40 db
Dimensions Printer unit*4 1928(W) x 2109 (D) x 1490 (H) mm 2815 (W) x 2109(D) x 1490 (H) mm 2815 (W) x 3126 (D) x 1490 (H) mm
2815 (W) x 3635(D) x 1490 (H) mm
Control tower 530 (W) x 530 (D) x 1080 (H) mm
Weight (Kg)

400 + 50 kg
(Control tower)

600 + 50 kg
(Control tower)
800 + 50 kg
(Control tower)
1000 + 50 kg
(Control tower)
Weight distribution 6 points - 6 feet (80 mm diameter) 8 points - 8 feet (80 mm diameter) 10 points - 10 feet (80 mm diameter)
Environment Power on Temperature: 20 to 32ºC (68 to 90ºF) (22ºC [72˚F] or more recommended) , Relative humidity: 35 to 80% (no condensation)
Power off Temperature: 5 to 40˚C (41 to 104˚F), Relative humidity: 20 to 80% (no condensation)
Included accessories RIP Software,  User manual, Power cable, cleaning kit, installation toolbox
Shipping Dimensions 3000 (W) x 1600 (D) x 1776 (H) mm 3500 (W) x 2000 (D) x 1776 (H) mm 3500 (W) x 2000 (D) x 1776 (H) mm 3700 (W) x 2000 (D) x 1776 (H) mm
Shipping Weight (Net + Pallet) 680 kg 920 kg 1180 kg 1440 kg

Specifications, designs and dimensions listed may be subject to change without notice.

*1 Maximum printable width with margins set to minimum.  Some media/objects may be less. Please check prior to printing.
*2 With Roland PET film, print travel: 1 m. Temperature: 25°C (77°F),relative humidity: 50%
*3 The following conditions must be met: Media type: Media specified by Roland DG Corp. Side margins: 25 mm or more for both the left and right margins. Front margin: 35 mm or more. Excluding expansion/contraction of the media Range for assured repetition accuracy length 3000 mm
*4 Due to vertical capacity of printer, device height will vary based on media being printed. Please ensure you have sufficient vertical space above printer.


Software System Requirements

 VersaWorks 6 System Requirements
Operating system Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit),
Windows® 7 Professional / Ultimate (32/64-bit)
CPU Intel® Core™2 Duo, 2.0 GHz or faster recommended
RAM 2 GB or more recommended
Video card and monitor A resolution of 1280 x 1024 or more recommended
Free disk space (HDD/SSD) 40 GB or more recommended
Hard-disk file system NTFS format
Other Internet connection recommended


Code Description
EUV5-5CY ECO-UV Ink Cyan, 500 cc
ECO-UV Ink Magenta, 500 cc
ECO-UV Ink Yellow, 500 cc
EUV5-5BK ECO-UV Ink Black, 500 cc
EUV5-5OR ECO-UV Ink Orange, 500cc
ECO-UV Ink Red, 500cc
EUV5-5GL ECO-UV Ink Gloss, 500 cc
EUV5-5PR Primer, 500 cc
ECO-UV Ink White, 220 cc


Code Description
SL-CL Cleaning liquid, 220 cc
L2044A8202 BOFA Air purification unit
ASB-330S Anti-static bar for LEC2-330S-F200 Flatbed
Anti-static bar for LEC2-640S-F200, F300 and F400 Flatbed
3 x TM-F-UN
Tilting mechanism for LEC2-330S-F200 Flatbed, LEC2-640S-F200 Flatbed
4 x TM-F-UN 1
Tilting mechanism for LEC2-640S-F300 Flatbed
4 x TM-F-UN
Tilting mechanism for LEC2-640S-F400 Flatbed
