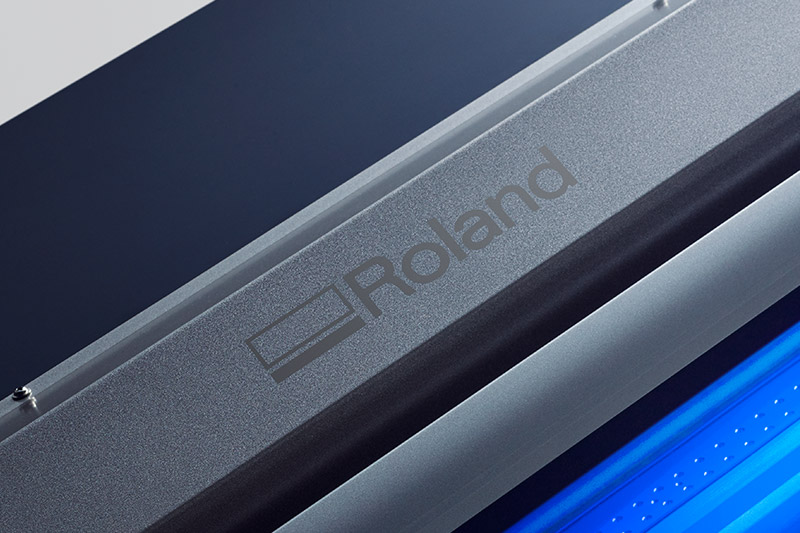

VersaUV LEC2-300

VersaUV LEC2-300 Specifications

Model LEC2-300
Printing method Piezo ink-jet method
Media Width 182 to 762 mm (7.2 to 30 in.)
Thickness Max. 1.0 mm (39 mil) with liner, for printing
Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
Roll outer diameter Max. 210 mm (8.3 in.)
Roll weight Max. 25 kg (55 lb.)
Core diameter (*1) 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing/cutting width (*2) Max. 736 mm (29 in.)
Ink Type ECO-UV (EUV4) 220 ml cartridge,
ECO-UV (EUV4) 500ml cartridge (White ink is not available in 500ml cartridge.)
Colors Six colors (cyan, magenta, yellow, black, white, and gloss)
Four colors (cyan, magenta, yellow, and black)
Ink-curing unit Built-in UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Cutting speed 10 to 300 mm/s (0.4 to 11.8 in/s)
Blade force (*3) 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.000 to 1.500 mm (0.0 to 59.1 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Distance accuracy (when printing) (*4) (*5) Error of less than ±0.3% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater
Distance accuracy (when cutting)(*4) Error of less than ±0.4% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled or ±0.1 mm (±3.9 mil), whichever is greater
Repeatability (when cutting) (*4) (*6) ±0.1 mm (±3.9 mil) or less
Alignment accuracy for printing and cutting (*4) (*7) ±0.5 mm (±19.7 mil) or less
Alignment accuracy for printing and cutting when reloading media (*4) (*8) Error of less than ±0.5% of distance traveled, or ±3 mm (±0.2 in.), whichever is greater
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 240 V ± 10%, 3.0 A, 50/60 Hz
Power consumption During operation Approx. 270 W
Sleep mode 40 W
Acoustic noise level During operation 63 dB (A) or less
During standby 53 dB (A) or less
Dimensions (with stand) 1,934 (W) × 795 (D) × 1,303 (H) mm (76.1 [W] × 31.3 [D] × 51.3 [H] in.)
Weight (with stand) 119 kg (262.4 lb.)
Environment During operation Temperature: 15 to 32°C (59 to 90°F),
Humidity: 20 to 80% RH (no condensation)
Not operating Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
Included items Dedicated stand, power cord, blade, blade holder, media clamps, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, etc.
  • *1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 3 inches. To use 2-inch media, the optional media flanges are required.
  • *2 The length of printing or cutting is subject to the limitations of the program.
  • *3
    • 500 gf is the maximum instantaneous blade force.
    • The blade force must be adjusted according to details such as the media thickness.
  • *4
    • Media type: Media specified by Roland DG Corporation
    • Temperature: 25°C (77°F), humidity: 50%RH
    • Roll media must be loaded correctly.
    • Applicable when all pinch rollers that can be used with the media width are used
    • Side margins: 25 mm (1.0 in.) or more for both the left and right margins
    • Excluding expansion/contraction of the media
    • Assumes all correction and adjustment functions of the machine have been used properly
  • *5
    • Print travel: 1 m (39.4 in.)
  • *6
    • [PREFEED] menu item must be set to "ENABLE." Range for assured repetition accuracy
    • For media with a width exceeding 610 mm (24.0 in.): Length: 4,000 mm (157.5 in.)
    • For media with a width of 610 mm (24.0 in.) or less: Length: 8,000 mm (315.0 in.)
  • *7
    • Provided that the media feed length is 3,000 mm (118.1 in.) or less
    • Excludes the effects of slanted movement and of expansion and contraction of the media
  • *8
    • Data size: 1,000 mm (39.4 in.) in the media-feed direction, 736 mm (29.0 in.) in the carriage-movement direction
    • No lamination
    • Automatic detection of crop marks at four points when media is reloaded
    • During cutting, [PREFEED] menu item must be set to "ENABLE."
    • Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media
VersaWorks 6 System Requirements
Operating System Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7 Ultimate / Professional (32/64-bit)
CPU Intel® Core™ 2 Duo, 2.0 GHz or faster recommended
RAM 2 GB or more recommended
Video card and monitor A resolution of 1,280 x 1,024 or more
Free hard-disk space 40 GB or more recommended
Hard-disk file system NTFS format
Optical drive DVD-ROM drive
Other Internet connection recommended
