VersaCAMM VS-300i Wide Format Inkjet Printers/Cutter Features

The Advantage of Integrated Print and Cut

VersaCAMM VS-300i streamlines the production process by automatically contour cutting printed graphics as soon as they finish printing. By eliminating the need to reload and reposition graphics, VSi integrated cutters save valuable time and effort, creating a tremendous competitive advantage.

Roland DG’s Quadralign system automatically realigns the cutting path and compensates for skew and distortion when removing prints to laminate then reload for cutting.

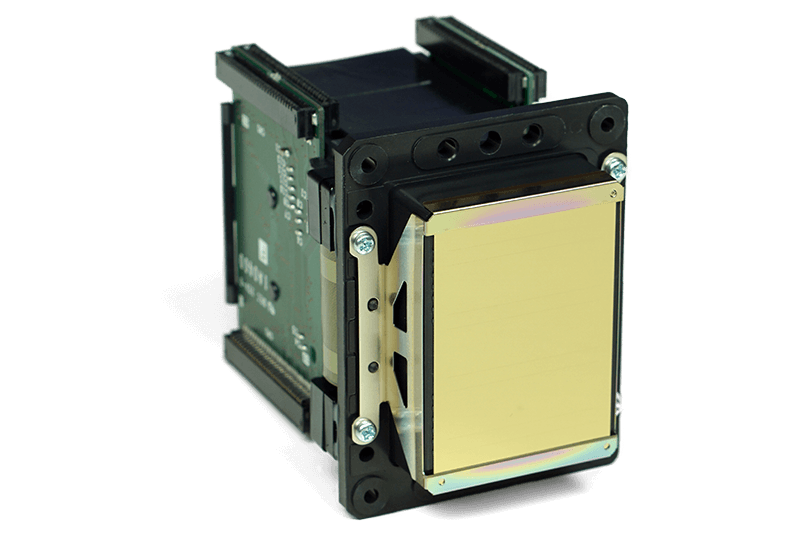

advanced eight-channel Piezo inkjet print head
advanced eight-channel Piezo inkjet print head

Advanced Eight-Channel Print Head Technology

The VS-300i features an advanced eight-channel Piezo inkjet print head containing 180 nozzles per channel in a gold-plated housing, specially engineered to ensure reliable, outstanding quality. With Roland Intelligent Pass Control technology and seven different droplet sizes available, the VS-300i achieves remarkably smooth gradations and richer density for photographic and high-resolution vector output at resolutions of up to 1440 x 720.
Eco-Sol MAX 2 eco-solvent inks

Superior Print Results with ECO-SOL MAX 2 Inks

Award-winning ECO-SOL MAX 2 eco-solvent inks produces rich, vibrant colour and low operating costs that latex inks simply can’t match. They dry quickly and provide unmatched long-term outdoor durability, scratch and chemical resistance, broad uncoated media support and a wide colour gamut.

GREENGUARD Certified

GREENGUARD Gold certification means that ECO-SOL MAX 2 inks meet some of the world's most rigorous standards for low emissions of VOCs into indoor air.

Ink Options Offer Maximum Potential

New ECO-SOL MAX 2 specialty inks enhance the image quality of Roland DG’s VSi Series printer cutters, even at higher speeds, allowing for stunning effects and adding value and sophistication to any graphic.

Light Black - Provides better reproduction of gray colour gradients and more natural skin tones.
Metallic Silver - This silver ink can be printed as a spot color or combined with CMYK to produce over 500 striking metallic and pearlescent colors.
High-Density White - Allows for greater opacity on clear or dark substrates

The VS-300i printer cutters can be configured in the following ways:
Ink Options
Ink options
Ink options
Roland

Automated Ink Circulation System

The VS-300i comes standard with Roland DG’s automated Ink Circulation System to prevent the pigments in metallic silver and white inks from settling. Designed to reduce waste of white and metallic silver ink, the circulation system dramatically lowers running costs while ensuring exceptional image quality throughout the longest production runs.
Roland

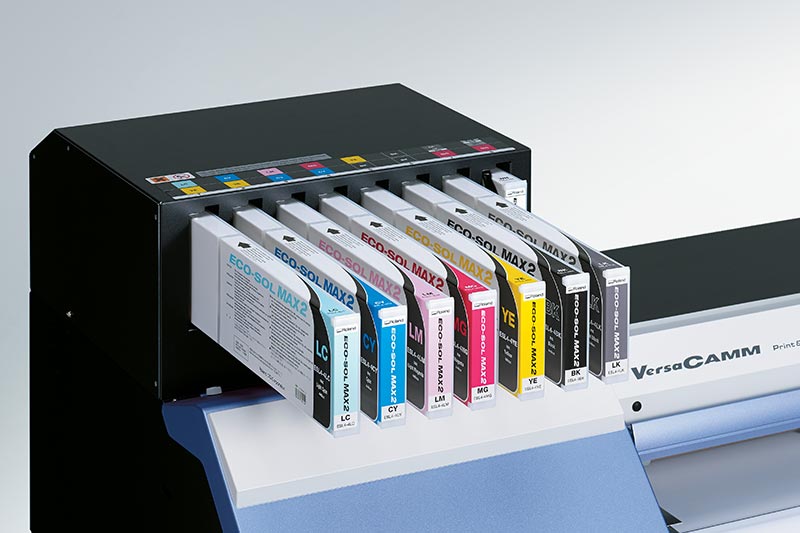

VersaCAMM VSi front-loading ink cartridge system
VersaCAMM VSi front-loading ink cartridge system

Front-Loading Ink Cartridge Loading System

The VS-300i’s easy-to-access front-loading ink cartridge system increases convenience and ease of use. Inks are packaged in convenient 440ml cartridges (White and Silver available in 220ml cartridges only).
VersaCAMM VSi Series Advanced Media Handling

Advanced Media Handling

Each VS-300i features an advanced media handling system, and allows users to feed rolls up to 55 pounds. Media flanges and seven pinch rollers providing accurate feeding and tracking throughout the longest production runs. Print head height is adjustable to accommodate variable media thicknesses.

To facilitate precision unattended printing, an optional TU2 take-up system is available and includes a convenient front-mounted take-up roller and an advanced tension-controlled take-up unit for optimum media feed and tracking.
VersaCAMM VSi Series Advanced Media Handling

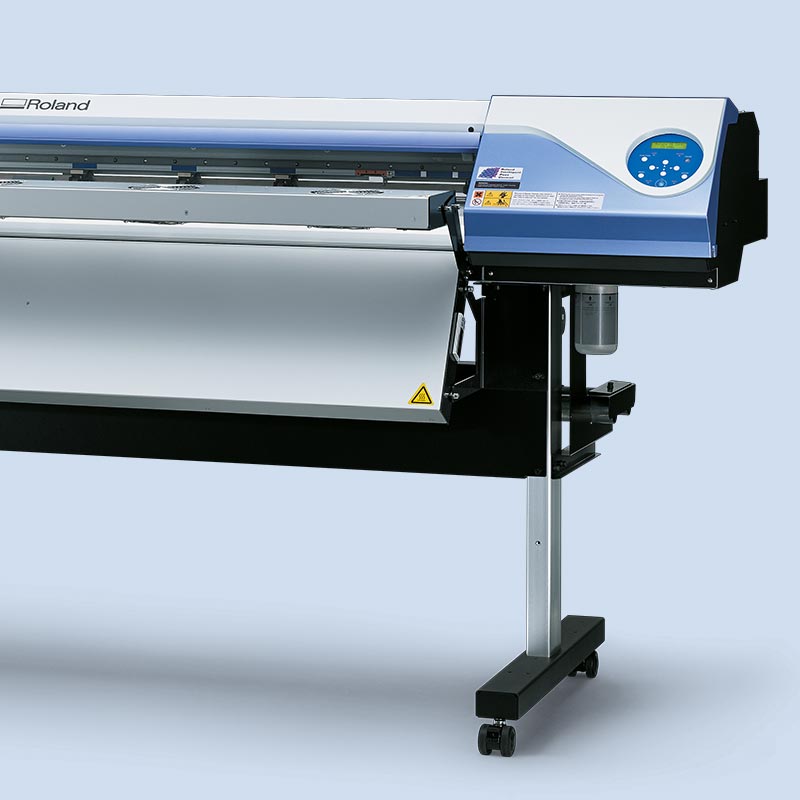

VersaCAMM VSi Series Printer/Cutters two-stage heating

Integrated Two-Stage Heating System and Optional Benes Dryer

The VS-300i features a built-in, two-stage integrated heater system designed to dry prints quickly, even in high speed modes, for immediate finishing, installation or collection by the take-up system. This advanced system delivers the proper amount of heat for each application and stores individual settings right in the printer.

To ensure the highest image quality when printing white and metallic silver inks, Roland also offers a dryer system as an option.
Wiper System

Wiper System Protects Print Head

A patent-pending wiper system is included to decrease wear and tear on the print head and prolong its life by reducing ink build up. The VS-300i includes a combination of standard wipers and additional side wipers that reduce the maintenance issues caused by ink reservoirs and dust, resulting in fewer manual cleanings.
Roland  VersWorks Dual
Roland  VersWorks Dual

All new VersaWorks Dual RIP Included

VersaWorks Dual – free with the XR-640 – features a new core engine for better file processing, including files with transparencies, plus the advanced and ease-of-use capabilities that VersaWorks is known for.

  • Now with native PDF processing, including files with transparencies
  • Supports up to four Roland devices
  • User-friendly interface
  • Predictive Ink Calculator
  • Built-in Pantone® and Roland Colour spot colour libraries
  • Variable data printing
  • Embedded ICC support ink level adjustment tools
  • Advanced cropping, tiling and nesting options

Need a Media Profile?

The Roland Profile Center makes it easier than ever to locate and download profiles from Roland and other major media profile suppliers.

VIEW ROLAND PROFILE CENTER

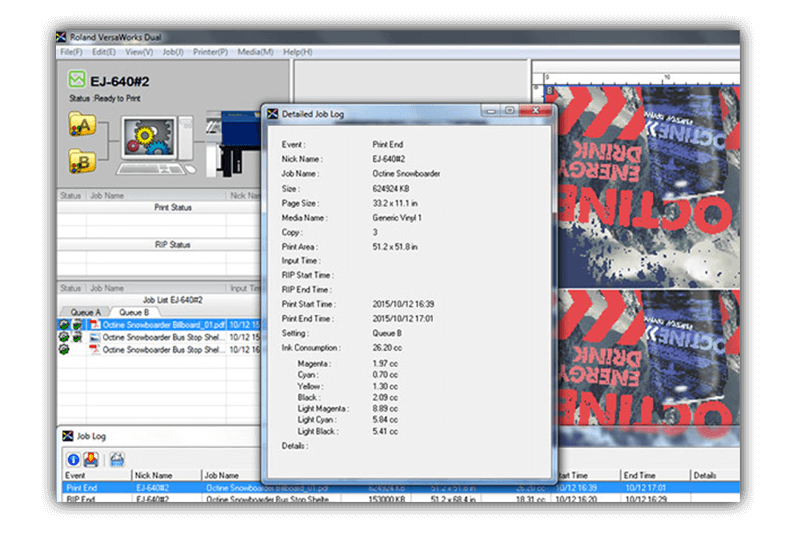

Predictive Ink Calculator, Roland OnSupport
Predictive Ink Calculator, Roland OnSupport

Print with Confidence, Even When You're Not There

Among the many benefits of owning an intelligent Roland inkjet is its ability to share information remotely. A Predictive Ink Calculator lets you see whether you'll have enough ink to run the print jobs you've posted to the queue. Roland OnSupport then sends an email to your computer or smart phone, notifying you when a job is completed or ink is running low.
GREENGUARD Certified

Environmental Certifications

In addition to using GREENGUARD Gold certified ECO-SOL MAX 2 inks, every VersaCAMM VS-300i printer/cutter is engineered for environmental efficiency with features that minimise ink consumption and reduce environmental waste and operational costs.

All ECO-SOL MAX 2 cartridges are eligible for the Roland Cartridge Recycle program.
GREENGUARD Certified

Legendary Roland Quality and Reliability Come Standard

The VersaCAMM VS-300i printer cutter features an industry leading 3-Year Heads ‘n All Warranty.

Roland DG is committed to customer satisfaction and providing unmatched reliability, earning a reputation for long-lasting, high-performance devices backed by first-rate customer service. Roland DG proudly displays all international ISO certifications as your assurance of superior quality.
