NEWVF2-640 Large-Format Inkjet Printer
RRP inc. GST
For 60 months inc. GSTRoland Rental
Before developing our latest TrueVIS with the goal of exciting hearts and minds, we researched the ideal performance required for sign and graphics production. The result of our efforts is a brilliant combination of super vibrant TR2 ink with new Green and Orange and the “True Rich Color” preset that maximises the potential of both printer and ink and enables you to explore uncharted colours for unprecedented gamut expansion, superior colour accuracy, and the unique ability to achieve both vividness and natural reproduction at the same time.
The TrueVIS VF2-640 is the only printer that can offer the extraordinary Power to Excite.
Only TrueVIS VF2-640 printers allow you to produce high quality graphics with "the Power to Excite."
New TrueVIS TR2 ink for Vibrant Colour
In addition to CMYKLcLmLk and White, new TR2 ink is now available in Orange and Green to further increase colour gamut. Orange in general adds high visibility and impact to printed graphics and offers a warm and welcoming glow with positive emotions, while green adds natural comfort and relaxed confidence for smooth communications. To maximise the effect of these new colour inks, a new Multi-Process Colour Function has been developed to enable using Orange and Green inks as process colours for richer visual expression.
Enhance your Business with "True Rich Color"
In order to take full advantage of the VF2-640 superior colour reproduction capability and the wider colour gamut provided by new TR2 ink, we developed a new True Rich Color preset. Now vibrant colour can be combined with neutral greys, smooth gradations and natural skin tones to create stunning graphics. This pioneering print quality is unequalled for durable graphics.
Quick and Easy Spot Colour Matching
Standard colours such as Pantone® or DIC can be quickly matched with accurate results using the Roland Colour System Library. With approximately 260 new spot colour references for Orange to Red areas and Blue to Green areas now available, specific targets which had been regarded as unreachable or difficult to match can now be easily achieved.
Easily Handle Short Turn-Around Orders

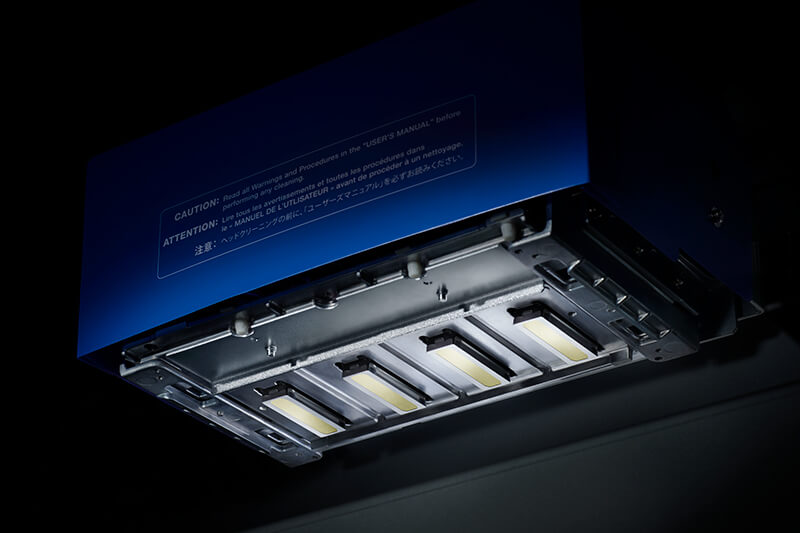

Roland DG FlexFire printheads maximise printing performance so that even the highest speed setting delivers neutral greys, vivid colours, and smooth skin tones.
Two Take-up Modes
A new take-up unit supports two modes according to the type of media chosen, securing take-up stability for smooth post processing.
A Nozzle Mask function allows you to continue printing even when a nozzle is clogged with ink.
New Media Clamp
A new media clamp allows sheet cutting without removal.
Advanced Colour Matching Function
A newly developed colour matching function makes it easy to reproduce matching colours among multiple VF2-640 printers, as well as between TrueVIS Series VG2-640/540 printer/cutters, when the same ink types are used. The function is ideal for producing consistent colours when using multiple printers for high-volume jobs, or printing large graphics among several printers. It also compensates for colour differences caused by ageing printers or print head replacements.
Efficient Printing and Cutting Workflow
For superior reliability, the VF2-640 is fully compatible when paired with Roland DG cutting devices, and print/cut data can be handled by VersaWorks 6 for efficient production of stickers and labels. The newly developed Job Assistant is also able to set and edit cutting lines in VersaWorks 6, making it a breeze to create stickers with complex shapes.CAMM-1 GR2 Large Format Vinyl Cutters
Smarter, More Seamless Operation
To enhance user experience and streamline the entire printing operation, we fine-tuned the VF2-640's design, job sequences, software functions, operation panel and maintenance procedures. In addition to the built-in control panel, the Roland DG Mobile Panel 2 lets you perform control panel functions, including test printing and cleaning, while checking the user manual from your smartphone or tablet using a Bluetooth connection.
Reliability, Durability and Safety
The VF2-640 with new TR2 ink is certified for long-lasting results by 3M™ MCS™ Warranty, providing your customers with the assurance of the quality and reliability of their graphics.More information about 3M™ MCS™ Warranty
The VF2-640 with new TR2 ink is also certified by the Avery ICS Performance Guarantee which provides protection for up to 4 years outdoors and up to 7 years indoors.More information about Avery ICS Performance Guarantee
In addition, the VF2-640 with TR2 ink is certified GREENGUARD Gold for safe indoor graphic applications.
VersaWorks 6 to Accelerate your Printing Business
The new VersaWorks 6 bundled RIP software is designed to simplify operation while maximising the power of your VF2-640 and other Roland DG devices. Features include:
- A Harlequin RIP dual-core engine with support for PDF 2.0 and native 64-bit processing provides accurate rendering of PDFs with shadows and transparencies
- Five print queues and the ability to save and store unlimited queue settings
- Special Colour Plate Generation lets you auto-generate White ink layers
- Newly developed Job Assistant function can layout and edit required cutting lines in VersaWorks 6
- Built-in Pantone® and Roland Colour spot colour libraries
Reliability, Warranty and Support
Built to provide years of reliable service – even in the most demanding print environments – Roland DG’s wide format printers come with a 1, 3 or 5 Year Warranty.
Roland DG has earned a reputation for long-lasting, high-performance devices, backed by first-rate customer service. This support includes expert technical assistance, videos and free Roland DG software updates for the lifetime of the machine.
Roland DG's international ISO certifications are your assurance of quality products and service.
Fixed Price Scheduled Servicing
With Roland DG’s Fixed Price Scheduled Servicing, travel costs for scheduled preventative maintenance services are fixed. Knowing the price of your service gives you guaranteed peace of mind, allowing you to more accurately plan the costs to your business.
Roland OnSupport for Remotely Managing Your Printer
|Printing method||Piezo ink-jet method|
|Media||Width||259 to 1,625 mm (10.2 to 64 in.)|
|Thickness||Max. 1.0 mm (39 mil) with liner
|Roll outer diameter||Max. 210 mm (8.3 in.)|
|Roll weight||Max. 40 kg (88 lb.)|
|Core diameter (*1)||76.2 mm (3 in.) or 50.8 mm (2 in.)|
|Printing width (*2)||Max. 1,615 mm (63.6 in.)
|Ink||Type||TrueVIS INK 500 ml pouch (only white 250 ml)
|Colors||8 colors (Cyan, Magenta, Yellow, Black, Light Black, Orange, Green, and White)
8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and White)
8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and Orange)
7 colors (Cyan, Magenta, Yellow, Black, Light Black, Orange and Green)
4 colors (Cyan, Magenta, Yellow, and Black)
|Printing resolution (dots per inch)||Max. 1,200 dpi
|Distance accuracy (*3)||Error of less than ±0.3% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater.|
|Media heating system (*4)||Print heater set temperature: 30 to 45°C (86 to 112°F)
Dryer set temperature: 30 to 50°C (86 to 122°F)
|Connectivity||Ethernet (100BASE-TX/1000BASE-T, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Power requirements||AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz|
|Power consumption||During operation||Approx. 1,090 W|
|Sleep mode||40 W|
|Acoustic noise level||During operation||63 dB (A) or less|
|During standby||53 dB (A) or less|
|Dimensions (with stand)||2,945 (W) × 730 (D) × 1,310 (H) mm (116 [W] × 28.8 [D] × 51.6 [H] in.)
|Weight (with stand)||200 kg (440.9 lb.)|
|Environment||During operation||Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80% RH (no condensation)|
|Not operating||Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)|
|Included items||Dedicated stands, power cord, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, user's manual, etc.|
- *1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 3 inches. To use 2-inch media, the optional media flanges are required.
- *2 The length of printing is subject to the limitations of the application software.
- Media type: Media specified by Roland DG Corporation
- Temperature: 25°C (77°F), humidity: 50%RH
- Roll media must be loaded correctly.
- Excluding expansion/contraction of the media
- Not assured when the print heater or dryer is used.
- Assumes all correction and adjustment functions of the machine have been used properly.
- Print travel: 1 m (39.4 in.)
- Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and the media width, the set temperature may not be reached.
