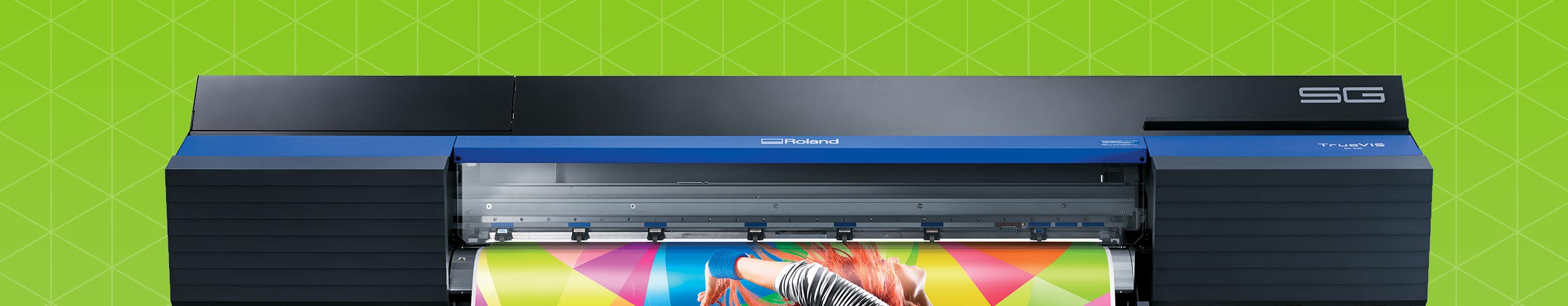

TrueVIS SG Series Printer Cutters Specifications
|Printing technology||Piezoelectric inkjet|
210 to 1371 mm (8.3 to 54 in.)
|182 to 762 mm (7.2 to 30 in.)|
|Thickness||Maximum 1.0 mm (39 mil) with liner for printing|
|Maximum 0.4 mm (16 mil) with liner and 0.22mm (9 mil) without liner for cutting|
|Roll outer diameter||Maximum 210 mm (8.3 in.)|
|Roll weight||Maximum 30 kg (66 lbs)||Maximum 25 kg (55 lbs)|
|Core diameter *1||76.2 mm (3 in.) or 50.8 mm (2 in.)|
|Printing/cutting width *2
||Maximum 1,346 mm (53 in.)||Maximum 736 mm (29 in.)|
||Type||Roland TrueVIS INK|
|Printing resolution (dots per inch)||Maximum 900 x 900 dpi|
|Maximum Speed (CMYK, 7 pass)||101.2 ft2/hr|
|Standard Speed (CMYK, 10 pass)||85 ft2/hr|
|Cutting speed||10 to 300 mm/s (0.4 to 11.8 in/s)|
|Blade force *3||30 to 500 gf|
|Blade offset||0 to 1.5 mm (0 to 0.059 in.)|
|Software resolution (when cutting)||0.025 mm/step (0.000984 in./step)|
|Distance accuracy (when printing) *4 *5||Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater|
|Distance accuracy (when cutting) *3||Error of less than ±0.4% of distance travelled, or ±0.3 mm, whichever is greater|
|When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled, or ±0.1 mm, whichever is greater|
|Repeatability (when cutting) *4 *6||±0.1 mm or less|
|Alignment accuracy for printing and cutting *4 *7||±0.5 mm or less|
|Alignment accuracy for printing and cutting when reloading media *3 *7||Error of less than ±0.5% of distance travelled, or ±3 mm, whichever is greater|
|Media heating system *8||Print heater||Setting range for the preset temperature: 86 to 112ºF (30 to 45ºC)|
|Dryer||Setting range for the preset temperature: 86 to 122ºF (30 to 50ºC)|
|Connectivity||Ethernet (10BASE-T/100BASE-TX, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Power requirements||AC 100 to 120 V ±10%, 9.8A, 50/60 Hz||AC 100 to 120 V ±10%, 7.9A, 50/60 Hz|
|AC220V to 240V±10%, 4.0A, 50/60Hz||AC 220 to 240 V ±10%, 2.7A, 50/60 Hz|
|Power consumption||During operation||1,050 W||710 W|
|Sleep mode||20 W||20 W|
|Acoustic noise level||During operation||65 dB (A) or less|
|During standby||48 dB (A) or less|
|Environmental||Power on (*10)||Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80 % RH (no condensation)|
|Power off||Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80 % RH (no condensation)|
|Dimensions (with stand))||105.7(W) x 29.3(D) x 51.6(H) 2685(W) x 745(D) x 1310(H) mm||81.5[W] x 29.3[D] x 51.6[H] in 2070[W] x 745[D] x 1310[H]mm|
|Weight (with stand)||178kg (392 lb)||147 kg (324lb)|
|Included items||Stand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc.|
*1 The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges.
*2 The length of printing or cutting is subject to the limitations of the program.
*3 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
*4 Using Roland specified media, print travel of 1m. Temperature: 25°C (77°F), humidity: 50%. Roll media must be loaded correctly. Applicable when all pinch rollers that can be used with the media width are used. Side margins: 25 mm (1.0 in.) or more for both the left and right margins. Front margin: 35 mm (1.4 in.) or more. Excluding expansion/contraction of the media. Not guaranteed when the print heater or dryer is used. Assumes all correction and adjustment functions of the machine have been used properly.
*5 Print travel: 1 m (39.4 in.)
*6 [PREFEED] menu item must be set to "ENABLE." Range for assured repetition accuracy. 54" model -For media with a width exceeding 24 in (610 mm in.): Length 315 in (8000 mm)- 30" Model Width 24 in (610mm) or less: Length 118.2 in (4000 mm)
*7 Provided that the media feed length is 3,000 mm (118.1 in.) or less. Excludes the effects of slanted movement and of expansion and contraction of the media.
*8 Data size: 54" Model: 39.4 in. (1000 mm) in the media-feed direction, 1,346 mm (53.0 in.) in the carriage-movement direction. 30" Model: 39.4 in. (1000mm) in the media-feed direction, 29in.(736 mm)in the carriage-movement direction. No Lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to "ENABLE." Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
*9 Warm-up is required after the power is turned on. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and the media width, the set temperature may not be reached.
*10 Operating environment: Use the machine in an operating environment within its range
|Roland VersaWorks Dual System Requirements|
|Operating system||Windows® 10 (32/64-bit)|
|Windows® 8.1 (32/64-bit)|
|Windows® 7 Professional / Ultimate (32/64-bit)|
|CPU||Intel® Core™2 Duo, 2.0 GHz or faster recommended|
|RAM||2 GB or more recommended|
|Video card and monitor||A resolution of 1,280 x 1,204 or more recommended|
|Free hard-disk space||40 GB or more recommended|
|Hard-disk file system||NTFS format|
|Optical drive||DVD-ROM drive|
* Roland VersaWorks Dual is a 32-bit application, which runs on 64-bit Windows® with WoW64 (windows 32-bit on Windows 64-bit).
