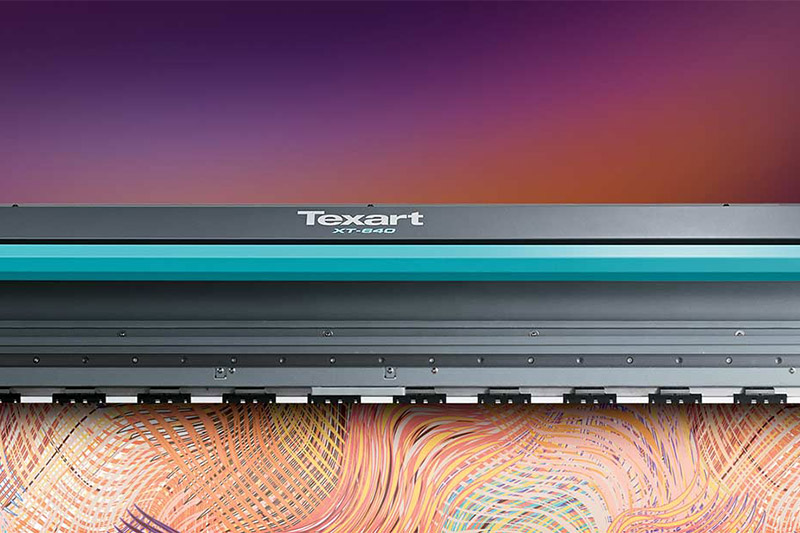

Texart XT-640 Dye Sublimation Printer Specifications
|Printing technology||Piezoelectric inkjet|
|Media||Width||259 to 1,625 mm (10.2 to 64 in.)|
|Thickness||Maximum 1.0 mm (39 mil)|
|Roll outer diameter||Maximum 210 mm (8.3 in.)|
|Roll weight||Maximum 40 kg (88 lbs.)|
|Core diameter *1||76.2 mm (3 in.) or 50.8 mm (2 in.)|
|Printing width *2
||Maximum 1,615 mm (63.6 in.)
||Types||Texart Ink (1 Litre pouches)
4-colour (CMYK) and 8-colour (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options)
Available colours: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow
|Printing resolution (dots per inch)||Maximum 1,440 dpi
|Distance accuracy *3||Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater|
|Dryer *4||Setting range for the preset temperature: 30 to 55°C (86 to 131°F)|
|Connectivity||Ethernet (100BASE-TX/1000BASE-T, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Power requirements||AC 100 to 120V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240V ±10%, 2.8A, 50/60 Hz|
|Power consumption||During operation||Approx. 750W|
|Sleep mode||Approx. 70 W|
|Acoustic noise level||During operation||62 dB (A) or less|
|During standby||45 dB (A) or less|
|Dimensions (with stand))||2,835(W) x 830(D) x 1,650 (H) mm
(111.7 (W) x 32.7 (D) x 65 (H) in.)
|Weight (with stand)||214 kg (471.8 lb.)|
|Environment||Power on||Temperature: 18 to 25°C (64.4 to 77°F)
Humidity: 35 to 65%RH (non-condensing)
|Power off||Temperature: 15 to 30°C (59 to 86°F)
Humidity: 20 to 80%RH (noncondensing)
|Included items||Exclusive stands, power cord, media clamps, media holder, replacement blade for separating knife, Software RIP, User's Manual, etc.|
ErgoSoft Roland Edition System Requirements
|Operating system||Windows® 8/8.1 (32/64-bit); Windows® 7 Ultimate/Professional (32/64-bit); Windows Vista® Ultimate/Business (32/64-bit)|
|CPU||Quadcore 2.5 GHz or faster recommended|
|RAM||4 GB or more recommended|
|Video card and monitor||A resolution of 1,280 × 1,024 or more recommended|
|Free hard-disk space||40 GB or more recommended|
|Optical drive||DVD-ROM drive|
*1 The media holder for this machine is exclusively designed for media rolls with a paper tube measuring 3 inches in diameter. To use 2-inches media rolls, the optional media flanges are required.
*2 The length of the production run is subject to the limitations of the software program.
- Media type: Media specified by Roland DG Corp.
- Temperature: 25°C (77°F), humidity: 50%
- Roll media must be loaded correctly.
- Excluding expansion/contraction of the media
- All corrections or adjustment function of this machine have been made properly.
- Print travel: 1 m
- Warm-up is required after the power is turned on. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and the media width, the set temperature may not be reached.
