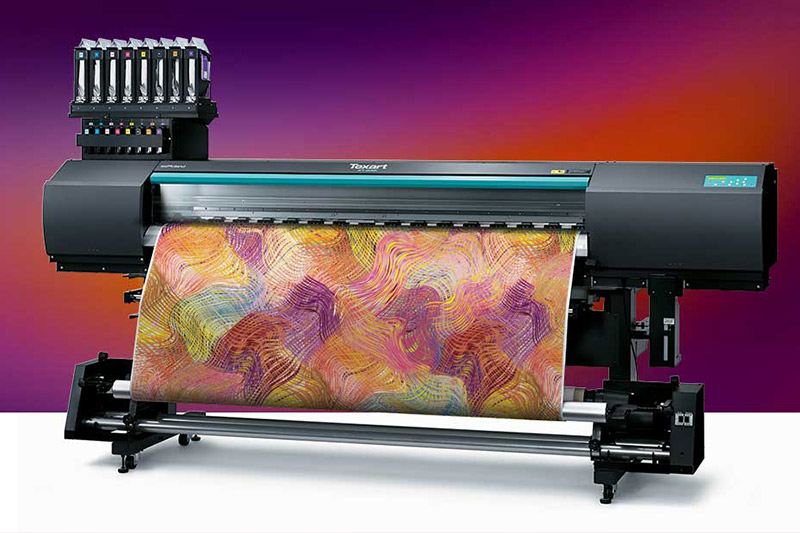

Texart XT-640 Dye Sublimation Printer

Texart XT-640 Dye-Sublimation Printer Features

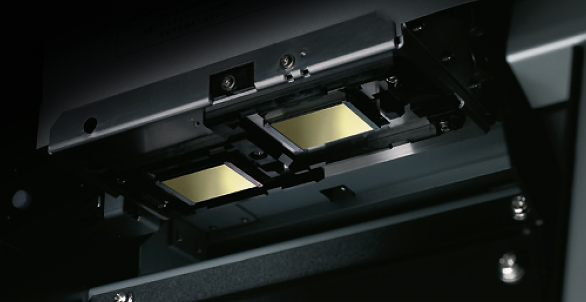

Dual Print Heads

Seven Droplet Print Heads Cover All the Details

The XT-640 Dye Sublimation Printer features dual staggered print heads to maximise productivity. Each Piezo inkjet print head has 8-channels containing 180 nozzles with seven different dot sizes. This allows the XT-640 to achieve smoother gradations, finer details and richer colour density for photographic quality graphics and high-resolution vector output.

Dual Print Heads

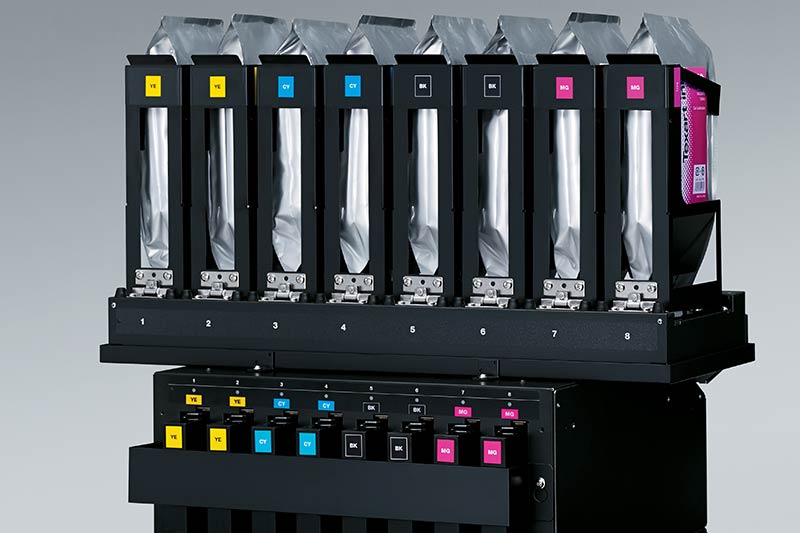

XT-640  Dye-Sublimation Printer 8-Color Ink Modes
XT-640  Dye-Sublimation Printer 8-Color Ink Modes

More Choice with 4-Colour or 8-Colour Ink Modes

In 4-colour (CMYK) high-speed print mode, the XT-640 is fast and efficient, producing fine details and deep colour contrast. In an 8-colour configuration (CMYK+LcLmOrVi / CMYK+OrViFpFy), the XT-640 delivers an extremely wide colour gamut with Orange, Violet, Light Cyan, Light Magenta, Fluorescent Pink and Fluorescent Yellow inks. In 8-colour set-up, you have the ability to reproduce Pantone Solid Coated colours as well as having a vast choice of vibrant fluorescents and soft pastel shades.

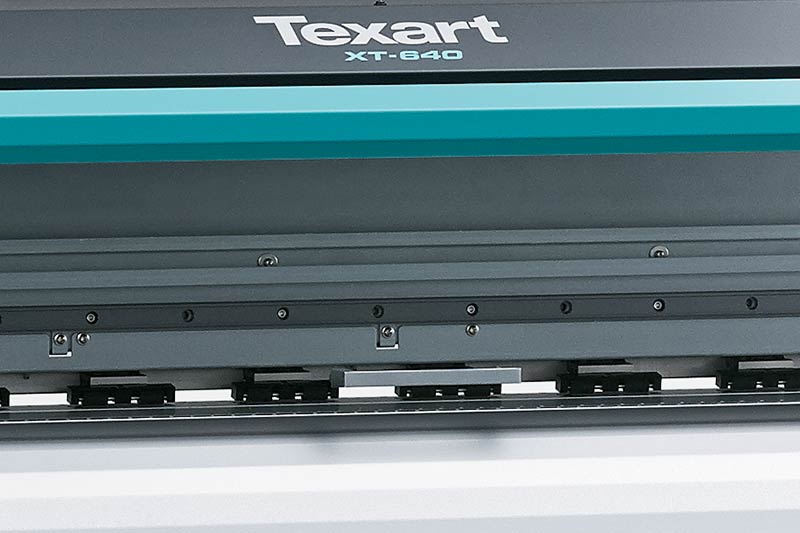

Media feed

New Media Feed System for Non-Shift Printing

The XT-640 Dye Sublimation Printer has a new media feed system that supports printing on a range of thick to thin papers. The new media holder keeps everything evenly tensioned and properly aligned while a powerful vacuum holds the paper flat. The front feed adjuster keeps media taut on the take-up reel and the whole system prevents transfer paper from buckling or shifting.

Media feed

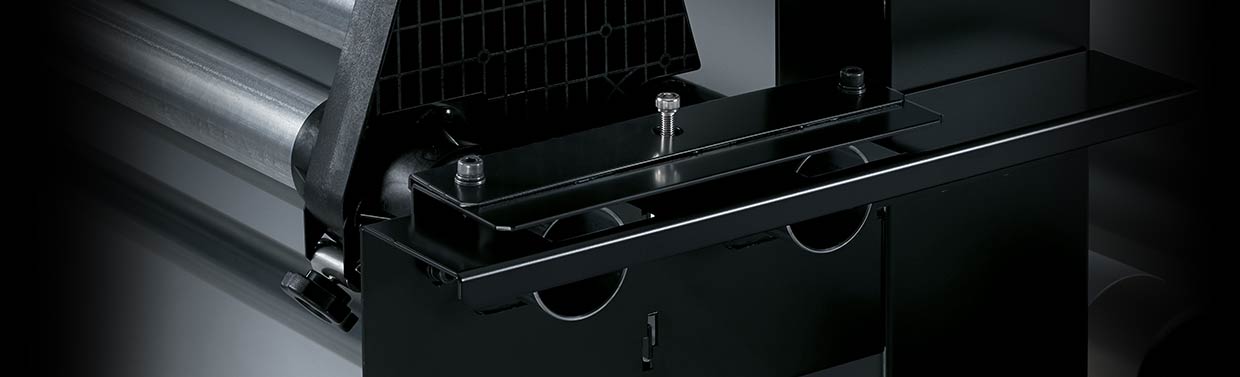

media feed adjuster

Simply Print and Go with Precision Take-up System

To support long runs, the XT-640 comes standard with a take-up system that features a front-mounted roller and a tension-controlled take-up unit. The following features offer easy and unattended feeding and tracking:

  • Supports heavy roll media up to 50 kg
  • Dancer roller with light-tension for stable take-up and easy-release
  • Fully-adjustable take-up operation allows for precision feeding and versatile media use
  • Decreased media resistance to dramatically improve feeding accuracy

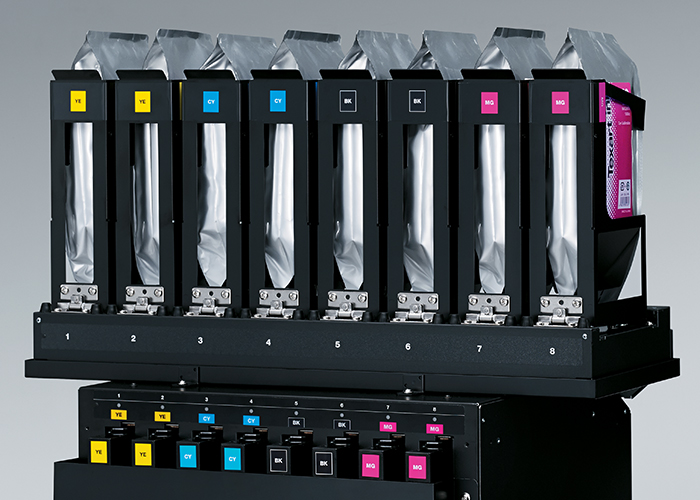

XT-640 Ink Switching

Automatic Bulk Ink-Switching System

When configured in 4-colour mode, the XT-640 can print continuously. Once the primary ink pouch and sub tank for a particular colour are empty, the ink switching system activates automatically and begins pulling ink from the secondary ink pouch, allowing for maximum productivity and efficiency.

XT-640 Ink Switching

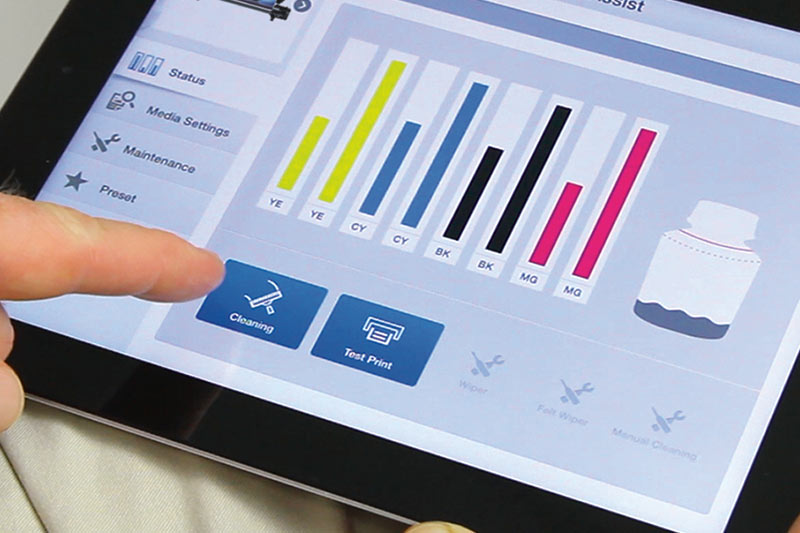

Printer Assist App
Printer Assist App

Remote Controlled Printing with Roland Printer Assist

Roland Printer Assist (RPA) is a free application available at the iTunes App Store that offers easy management of the XT-640 by accessing its control panel directly from an iPad. With RPA users can remotely control the XT-640 and view print status, run machine calibration and perform maintenance. In addition, RPA features multiple printer management from one iPad.

ergosoft Roland Edition
ergosoft Roland Edition

ErgoSoft is widely regarded as the premier RIP software in the textile and dye sublimation market. The Roland DG Edition of this software is specially designed for use with the XT-640 in 4-colour and 8-colour modes and features the following:

  • Work in print environments and print modes for the most common fabrics.
  • Step & repeat and tiling features for advanced media saving and efficiency.
  • Superior colour management with colour replacement and extensive Colorbooks swatches.
  • Job cost calculation and other advanced production features.
Texart XT-640 dye-sublimation with fluorescent ink

Add Some Rad with Fluorescent Inks

Choose from 375 predefined colors in the Roland DG Fluor Colour Library with new Fluorescent Pink (Fp) and Fluorescent Yellow (Fy) SBL3 Texart inks. Combine Fp+Fy with CMYKOrVi to incorporate brilliant fluorescent colours into expressive sportswear, apparel, soft signage and décor.

Texart XT-640 dye-sublimation with fluorescent ink

Real-Time Support with Roland OnSupport®

Roland OnSupport provides online feedback on machine status via email alerts to the user’s computer or smart phone. The system automatically notifies users of job completion, ink consumption, machine usage metrics, maintenance issues and firmware updates. It also provides access to manuals, guides and other support info.

Reliability, Warranty and Support

Built to provide years of reliable service – even in the most demanding print environments – Roland DG’s wide format printers come with a 1, 3 or 5 Year Warranty.

Roland DG has earned a reputation for long-lasting, high-performance devices, backed by first-rate customer service. This support includes expert technical assistance, videos and free Roland DG software updates for the lifetime of the machine.

Roland DG's international ISO certifications are your assurance of quality products and service.


Fixed Price Scheduled Servicing

With Roland DG’s Fixed Price Scheduled Servicing, travel costs for scheduled preventative maintenance services are fixed. Knowing the price of your service gives you guaranteed peace of mind, allowing you to more accurately plan the costs to your business.
