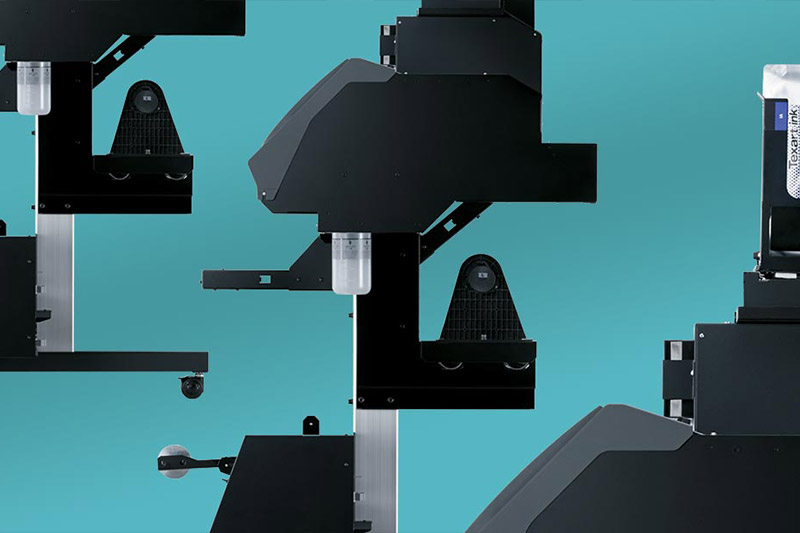

Texart RT-640 Dye Sublimation Printer Specifications
| Printing technology | Piezoelectric inkjet | |
Media |
Width | 259 to 1,625 mm (10.2 to 64 in.) |
| Thickness | Maximum 1.0 mm (39 mil) | |
| Roll outer diameter | Maximum 210 mm (8.3 in.) | |
| Roll weight | Maximum 40 kg (88 lbs.) | |
| Core diameter 1 | 76.2 mm (3 in.) or 50.8 mm (2 in.) | |
| Printing width 2 | Maximum 1,615 mm (63.6 in.) | |
| Ink pouches | Types | Exclusive sublimation ink pouch |
Colours |
4-colour (CMYK) and 8-colour (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options) Available colours: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow | |
| Printing resolution (dots per inch) | Maximum 1,440 dpi | |
| Distance accuracy 3 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | |
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240 V ±10%, 1.5 A, 50/60 Hz | |
| Power consumption | During operation | Approx. 140 W |
| Sleep mode | Approx. 31 W | |
| Acoustic noise level | During operation | 62 dB (A) or less |
| During standby | 49 dB (A) or less | |
| Dimensions (with stand) | 2,650 mm (W) x 795 mm (D) x 1,600 mm (H) (104.4 (W) x 31.3 (D) x 63 (H) in.) | |
| Weight (with stand) | 160 kg (353 lbs) | |
Environment |
Power on | Temperature: 18 to 25° C (64.4 to 77° F), humidity: 35 to 65% RH (non-condensing) |
| Power off | Temperature: 15 to 30° C (59 to 86° F), humidity: 20 to 80% RH (non-condensing) | |
| Accessories | Exclusive stands, power cord, media clamps, media holder, replace- ment blades for separating knife, User's Manual, etc. | |
ErgoSoft Roland Edition System Requirements
| Operating system | Windows® 8/8.1 (32/64-bit); Windows® 7 Ultimate/Professional (32/64-bit); Windows Vista® Ultimate/Business (32/64-bit) |
| CPU | Quadcore 2.5 GHz or faster recommended |
| RAM | 4 GB or more recommended |
| Video card and monitor | A resolution of 1,280 × 1,024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Optical drive | DVD-ROM drive |
| 1. | The media holder of this machine is exclusive use for the media of paper tube (core) inner diameter 3 inches. To use 2 inches media, the optional media flanges are required. |
| 2. | The length of printing is subject to the limitations of the program. |
| 3. | • Media type: Media specified by Roland DG Corp. • Temperature: 25°C (77°F), humidity: 50% • Roll media must be loaded correctly. • Excluding expansion/contraction of the media • All corrections or adjustment function of this machine have been made properly. • Print travel: 1 m |
