Texart RT-640 Dye-Sublimation Printer

Texart RT-640 Dye-Sublimation Printer Features

More dye-sublimation substrates means more opportunity.

Dye-sublimation is a beautifully simple and affordable method of customisation. With a large format set-up that includes an RT-640 and a price comparable heat press, you can get the most bang-for-your-buck as far as graphics and product branding goes. Simply print your design onto transfer paper and heat press it onto the available product blanks and dye-sublimation substrates:

Polyester fabrics
ChromaLuxe metal panels
Ceramic items
Thongs
Lycra and performance Fabrics
Sporting goods
Smart Device Cases
Carpet tiles
Texart RT-640 Dye-Sublimation Printer with 4-color or 8-color options

Cutting-edge Ink with 4-colour, 8-colour and Fluorescents

The Texart RT-640 can be configured as a 4-colour or 8-colour device. In 4-colour (CMYK) mode, Texart ink produces bright colours with velvety blacks, improved grey scale and high quality, detailed output. In 8-colour (CMYK+LcLmOrVi and CMYK+OrViFpFy) mode, the addition of Orange, Violet, Fluorescent Pink and Fluorescent Yellow inks produce an increased colour gamut with both delicate and intense hues. Fluorescent Pink and Yellow inks can be combined with process colors (CMY+Fp+Fy) to produce an array of vivid fluorescents and soft pastel shades.

An advanced, 8-channel print head contains 180 nozzles per channel capable of producing seven different droplet sizes for smoother gradations and denser colour. Texart ink is approximately 15% less expensive per litre than conventional inks, yet provides outstanding colour reproduction. Lower running costs are also achieved due to the ink waveform and maintenance sequence control technology engineered for Texart ink and the RT-640.

The Roland Ink System uses airtight sealed pouches of one litre each. When in 4-colour mode, the system provides two litres per colour. The proprietary Roland Ink Switching System* automatically switches to the backup ink pouch when the primary pouch runs out. Further expediting production, you can replace an empty pouch without stopping the printer.

* Available only in 4-colour mode

MORE DETAILS AND SPECIFICATIONS ON TEXART SBL3 INKS

RT-640 feed adjustment
RT-640 feed adjustment

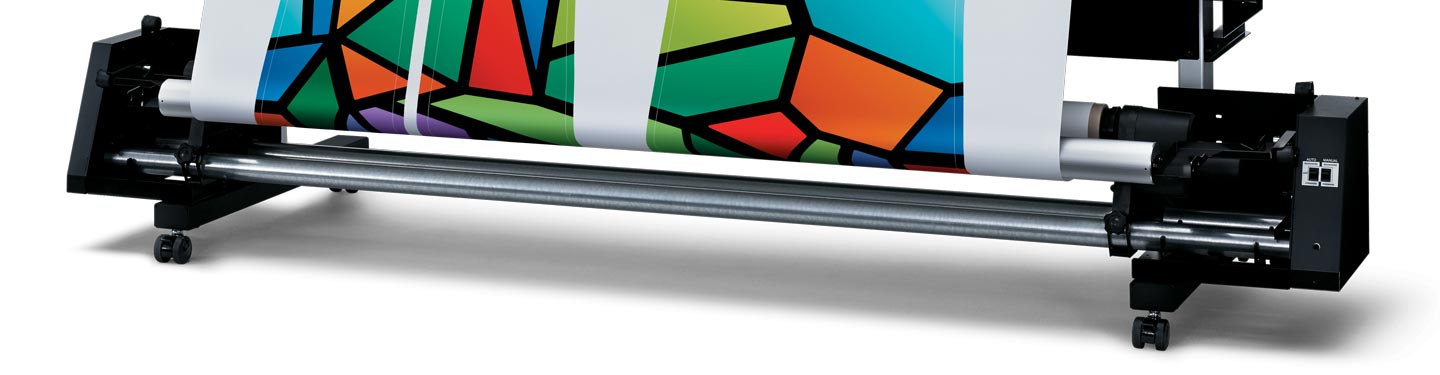

Media Take-Up System Included

The RT-640 includes a feed adjustment function that combines with a TU3 take-up attachment to ensure a stable and uninterrupted production even in high-speed modes. The TU3 take-up system includes a front-mounted roller and tension controlled take-up unit for smooth media feeding and tracking. Its main features include a roll media support that holds 50kg, a dancer roller for effortless take-up, auto media release and auto media rewind, and a rotating shaft face to decrease resistance and ensure flawless feeding accuracy.
ergosoft Roland Edition
ergosoft Roland Edition

Additional ErgoSoft RIP Software made for the RT-640.

ErgoSoft Roland Edition was developed especially for Roland by ErgoSoft, the premier RIP provider in the textile market. Support for both 4-colour and 8-colour printing is provided and it includes numerous features especially for digital textile production that combine excellent high-speed RIP throughput and image quality.

Features include:

  • Custom colour replacement
  • Superior dithering methodology
  • Step and repeat
  • Ink limit controls
  • Scale and shrinkage correction
  • Production control utilities
Texart RT-640 Dye-Sublimation Printer remote controlled sublimation

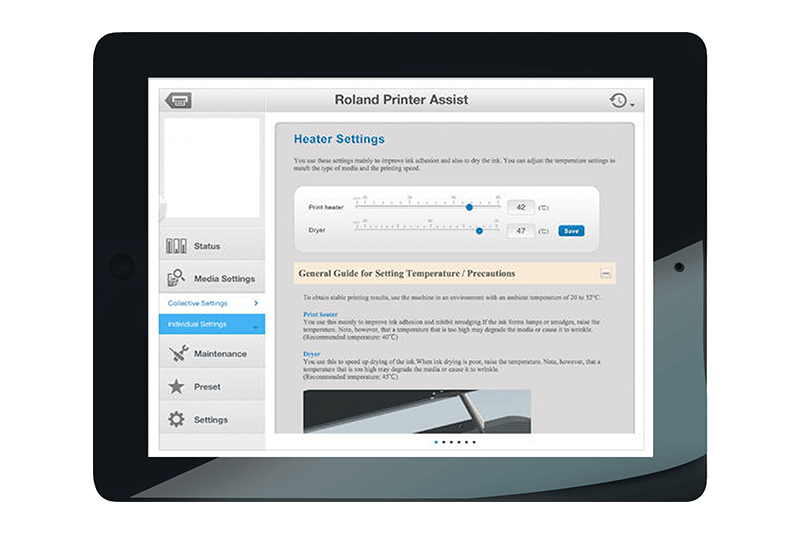

Roland Printer Assist

Thanks to Roland Printer Assist, you can manage your RT-640 remotely when you're in the office using an iPad tablet. Free and available for download from the iTunes App Store, the Roland Printer Assist app enables users to manage production, test printing, and even access cleaning functions from virtually any location.

You can instantly observe key operating functions such as the amount of ink remaining and waste bottle status. Roland Printer Assist notifies you when consumable parts replacement should be performed to ensure printer reliability. Roland Printer Assist allows you to manage multiple printers from a single iPad.
Texart RT-640 Dye-Sublimation Printer remote controlled sublimation

Roland DG Quality and Reliability is Standard

The RT-640 printer is backed by a comprehensive 3-Year Heads ‘n All Warranty*.

Roland DG is committed to customer satisfaction and providing unmatched reliability, earning a reputation for long-lasting, high-performance devices backed by first-rate customer service. Roland DG proudly displays all international ISO certifications as your assurance of superior quality.
