Make Your Mark
An easier way to mark tools and instruments.

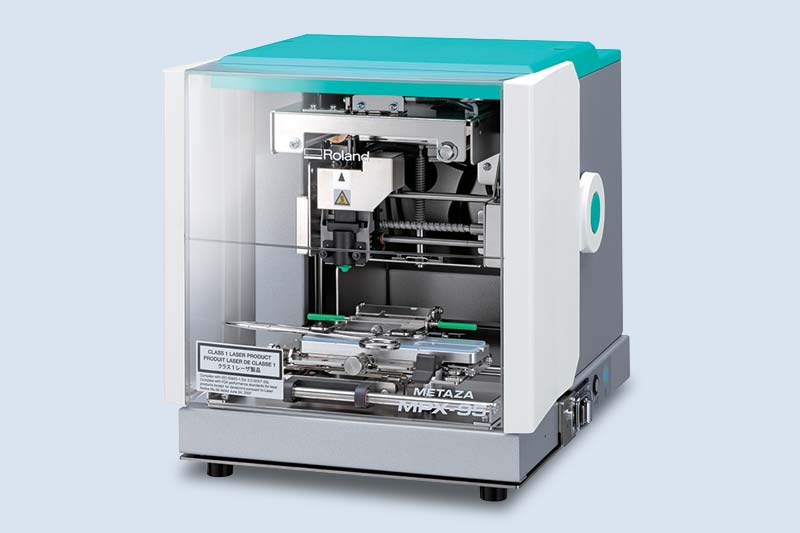

METAZA MPX-95 Photo Impact Printer with DPM Kit

  • LIST PRICE

    AU $7,694.50

    OPTIONAL DPM KIT

    AU $7,694.50

    RRP inc. GST


  • RENTAL PRICE

    AU $183 / Month

    For 60 months inc. GST


    Roland Rental

Affordable and easy-to-operate, the MPX-95 offers the most versatile marking solution for industrial parts marking and medical equipment. Users of all abilities can add precision data to a wide range of metal equipment.

Find a dealer

MPX-95 DPM Kit

Mark on a Wide Range of Hard Materials

A durable diamond-tipped stylus strikes material with high speed and precision to mark fine text and complex data patterns onto:

Stainless steel
Platinum
Silver
Iron 		Copper
Nickel
Gold
Aluminium

Laser Pointer Set-Up

A built-in laser pointer accurately defines centre point on work piece before imprinting. At the touch-of a button, users can set the print position for precise marking every time.

Expand Media Options

The base plate and base unit can be removed to enable imprinting onto much larger medical tools, devices and industrial equipment.

Direct Part Marking Kit Includes:

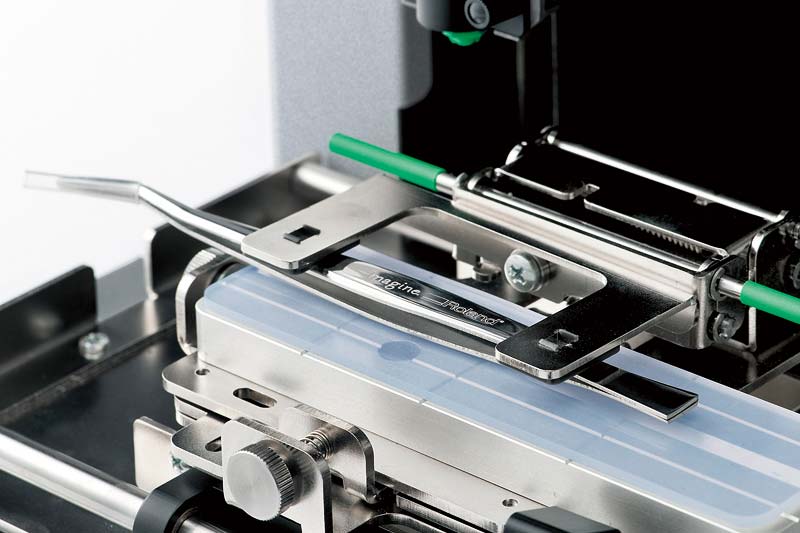

DPM Vise
DPM Vise

DPM Vise

A movable and fully-adjustable vise with multiple tool-holding options can be quickly set-up to hold medical scissors, tools and other items. It's ideal for marking different items with contrasting dimensions in succession.
MPX-95 with Center Vise and Clamp Pins

Centre Vise with Clamp Pins

Uniquely position different sized clamp-pins to hold irregular-shaped and cylindrical items for repeat, precise personalisation of equipment with the same dimensions.
MPX-95 with Center Vise and Clamp Pins

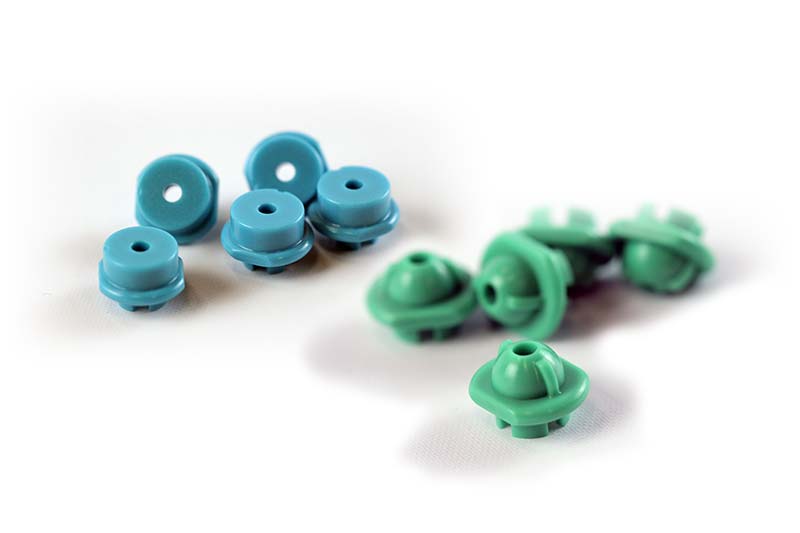

Head Caps
Head Caps

Head Caps

30 rounded and 10 flat head caps are included in the DPM Kit for use on flat and curved surfaces.

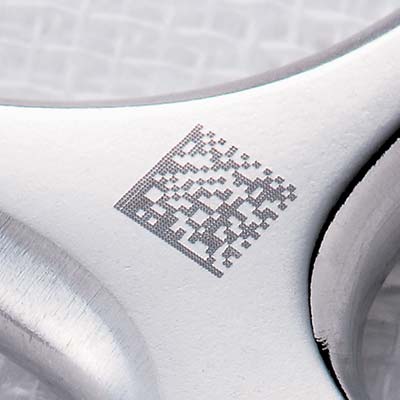

Variable Data Imprinting

Data Imprinting

Imprint up to 26 digits of barcode data inside an area as small as one square millimeter. Users can also automatically apply serial barcodes and security numbers with variable data options.
Variable Data Imprinting

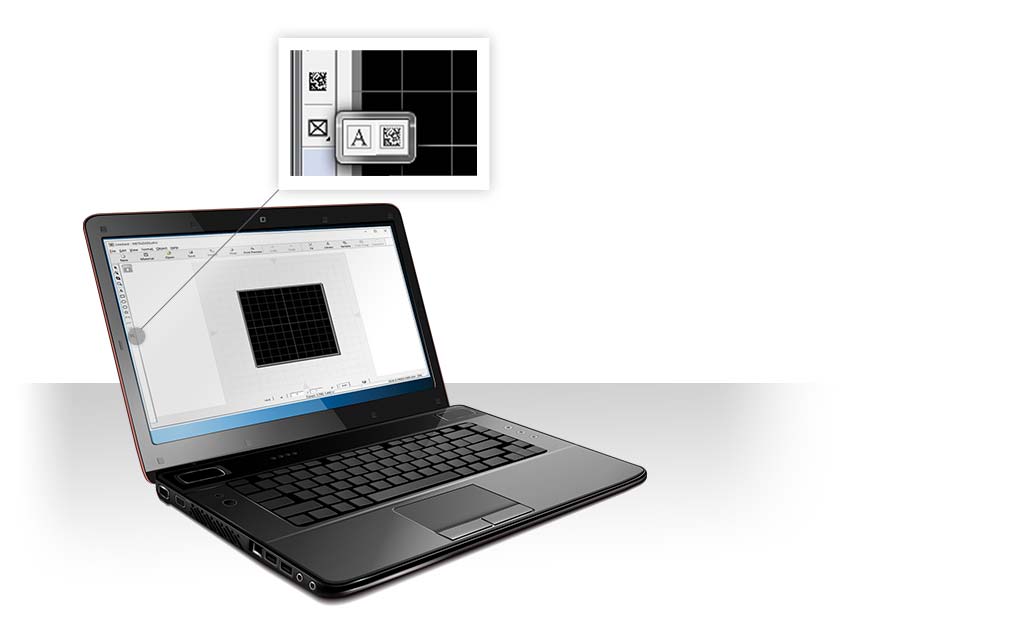

DPM Kit Software

Included METAZA Studio Software

The DPM version of METAZA Studio allows users to apply sequential data to each item in a series, add text, import variable data without having to save a CSV file, and automatically generate 2D symbols for an effortlessly easy solution.

Compact, Quiet and Safe

The MPX-95 runs quietly, cleanly and safely in medical facility and office environments. Because it does not burn or remove material on impact, it generates no odors or debris. No daily maintenance, special power or ventilation is required.

The Peace of Mind That Comes with Buying a Roland

With the MPX-95 you get the same built-to-last reliability and unmatched service and support that Roland devices are famous for. Like all Roland products, the MPX-95 was designed and manufactured at a state-of-the-art, ISO-certified facility. With a 3 Year Parts ‘n All Warranty, you have the peace of mind knowing your device is backed by one of the most comprehensive warranty packages in the industry.

Book a Demo

Applications

Industrial Marking

Medical
