EGX-30A desktop engraver

EGX-30A Desktop Engraving Machine Specifications

Model EGX-30A
Table 305 x 205 mm (12 x 8 1/16th in)
Max. operation area 305 x 205 mm (12 x 8 1/16th in)
Feed rate 50mm/sec. (1 15/16th in/sec.)
Mechanical resolution 0.01mm/step (0.000394 in/step), 0.00125mm/step (0.0000492 in/step) using micro step control.
Software resolution 0.01mm/step (0.000394 in/step)
Distance accuracy 0.000394 in/step (+/-0.1mm) or +/-0.5% of moving distance, Whichever is greater.
Right-angle accuracy +/-0.000394in (12 1/16” in), +/-1mm (305mm)
Spindle motor Brushless DC motor, maximum 27W
Revolution speed 5,000 to 10,000 rpm
Engraving tool mounting diameter 3.175mm (1/8in.)
Acceptable engraving materials Plastics (ABS, Acrylic) and Brass and Aluminum for Scribing
Speed of tool up / down movement 1 per sec.
Interface USB 1.1 (compliant with Universal Serial Bus Specification Rev. 1.1), Serial (RS-232C compliant)
LED Operation indicators 2 (PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT,)

Mode Indicators 2 (ENGRAVER/SCORE)

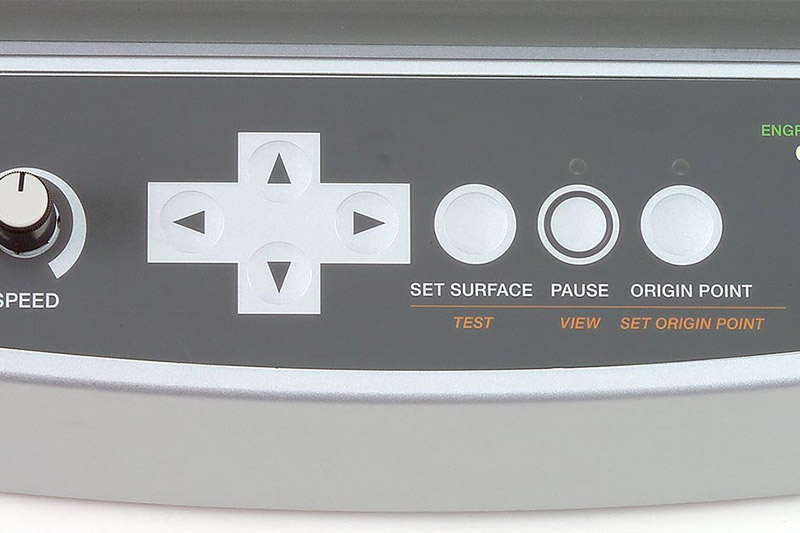

Control panel keys ↑,↓,←,→, SET SURFACE/TEST, PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT, SELECT
Power requirements Dedicated AC Adapter: AC 100 to 240V +/- 10% 50/60 Hz

Machine: DC 24V, 0.7A
Acoustic noise level Operation Mode: 70 dB (A) or less, Standby mode: 40dB (A) or less

(According to ISO 7779)
External dimensions 513 mm (W) x 491 mm (D) x 217 mm (H)

20-1/4 in. (W) x 19-3/8 in. (D) x 8-9/16 in. (H)
Weight 13.2 kg (29.1 lb.)
Packed dimensions 863.6 mm (W) x 609.6 mm (D) x 304.8 mm (H)

34 in. (W) x 24 in. (D) x 12 in. (H)
Packed weight 17.0 kg (37.5 lb.)
Operation temperature 5 to 40°C (41 to 104°F)
Operation humidity

35 to 80% (no condensation)

Accessories

AC Adapter, Power cord, USB Cable, Dust collector hose and duct, Character cutter, Engraving-tool holder, Diamond scribe adapter, Hexagonal screw driver, Spanner, Hexagonal wrench, Test material, Adhesive sheet for securing material, Roland Software package CD-ROM, User’s manual
