Two New Dental Mills Designed to Meet Your Needs

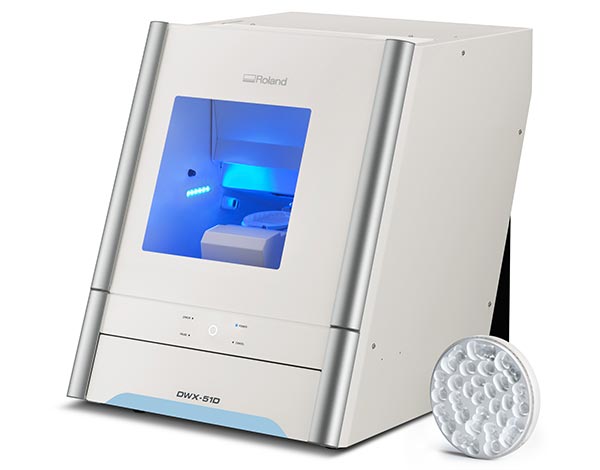

With a host of automated features and precise 5-axis milling, the DWX-51D is the perfect solution for labs wanting to increase production or those looking to get into digital milling for the first time.
Key features include:
- Capable of 5-axis simultaneous machining to achieve complex cuts
- Precision milling of Zirconia, Wax, PMMA, Composite resin, PEEK and Gypsum
- 10-station automatic tool changer with tool length sensor
- Diagnostic notification system alerts user of machine status
- VITA certifies the Roland DWX-51D for milling VITA ENAMIC®


The latest dental mill technology enables wet milling of popular glass ceramic and composite resins with the precision and reliability Roland DG products are known for. It combines simultaneous 4-axis milling with a simple one-touch operation for easy, unattended milling.
Key features include:

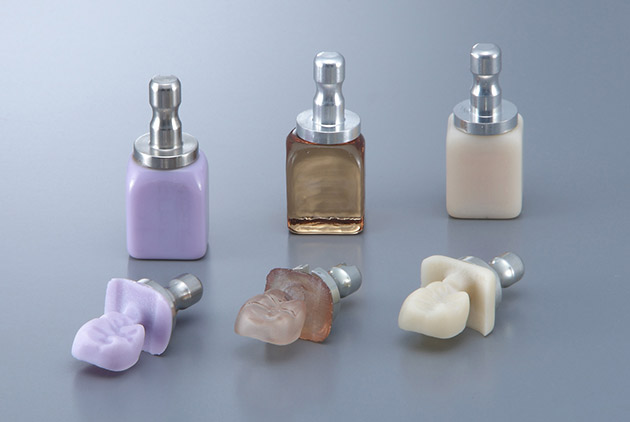

- Precision milling of glass ceramic and composite resin
- Multi pin-clamp to mill up to three different pin-types continuously
- Automatic tool to change grinding burs without interruption
- Easy VPanel operation to configure settings and track production
- VITA certifies the Roland DWX-4W for milling VITA ENAMIC® and VITABLOCS® Mark II, and VITA SUPRINITY®

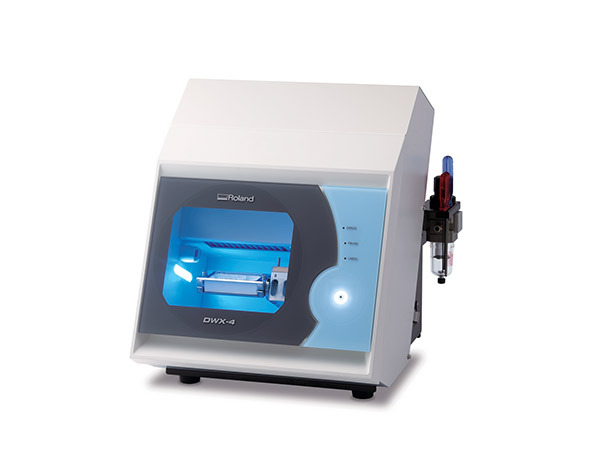

This affordable, precise 4-axis desktop mill is an ideal choice for labs just getting started in digital dentistry or for those that want to perform smaller, time-urgent jobs without tying up their larger production mills.
Key features include:
- Compact size is ideal for any lab environment
- Capable of unattended 4-axis milling with simple one-button operation
- Precision milling of wax, zirconia, nano composites and PMMA
- Integrated air flow system keeps work area clean
- Diagnostic notification system alerts user of machine status
- CAM software included
Which DWX Mill is Best for My Lab?
DWX Features and Capabilities | DWX-51D | DWX-4W | DWX-4 |
---|---|---|---|
Mandrel mounted material support | Yes (standard) |
Yes (standard) |
Yes |
Number of working axis | 5 | 4 | 4 |
Automatic tool changer (ATC) | Yes | Yes | Yes |
Number of tools in ATC | 10 | 4 | 2 or 4 (option) |
Zirconia | Yes | Not approved | Yes |
Wax | Yes | Not approved | Yes |
PMMA | Yes | Not approved | Yes |
Composite resins | Yes | Yes | Yes |
Glass ceramics | No | Yes | No |
Material sizes supported |
Disks/up to 9 Pin-Type |
Up to 3 Pin-Type |
Block, Pin-Type |
