MDX-540 benchtop milling machine

MDX-540 Milling Machine Specifications

MODEL MDX-540 MDX-540S
Usable Materials Plastic, resin, wood and non-ferrous metals
XYZ-Axis Travel 500 (X) x 400 (Y) x 155 mm (Z) [19.6(X) x 15.7(Y) x 6.1"(Z)]

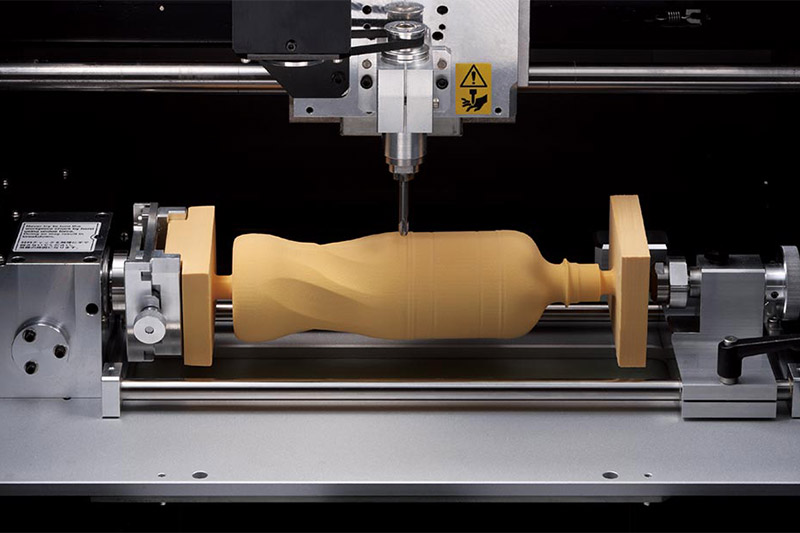

Loadable workpiece size with optional rotary axis (ZCL-540) * 177.8mm Diameter x 370.8mm Length [7.0” Diameter x 14.6” Length]
Actual milling area is smaller
Distance From Spindle Nose to Table Maximum 254mm (10")
Table Size 550(W) x 420mm (D) [21.7(W) x 16.5"(D)]
Loadable workpiece weight At acceleration of 0.2G: maximum 12kg (26lb), 0.1G: 20kg (44lb), 0.05G: 20kg (44lb)
XYZ-axis drive system AC servo motor, 60W AC servo motor, 80W
Operating speed Maximum 7.5m/min (295ipm)
Acceleration 0.2G, 0.1G, 0.05G
Software resolution RML-1 mode: 0.01mm (0.0004"), NC-code mode: 0.001mm (0.00004")
Mechanical resolution 0.001mm (0.00004”)
Positioning accuracy +/-0.1mm/300mm (+/-0.004"/12"), under no-load conditions
Repeat accuracy +/-0.05mm (+/-0.0019"), under no-load conditions +/-0.02mm (+/-0.0008"), under no-load conditions
Origin reproducibility (when the power is switched on/off) +/-0.05mm (+/-0.0019") +/-0.02m (+/-0.0008")
Spindle motor DC brushless motor, maximum 400W
Spindle speed 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering
Tool chuck Collet method, maximum tool diameter: 0.4" (10mm)
Control command sets RML-1 and NC codes
Interface USB (compliant with Universal Serial Bus Specification Revision 1.1)
Power supply Voltage and frequency: AC 100 to 120 V/220 to 240 V +/-10%, 50/60 Hz
Required power capacity: 7A (100 to 120V)/4A (220 to 240V)
Power consumption Approx. 700W
Acoustic noise level During operation (no cutting): 65dB (A) or less, during standby: 40dB (A) or less (according to ISO 7779)
Dimensions Width x depth x height: 745 x 955 x 858mm (29.3 x 37.6 x 33.8Z") Width x depth x height: 765 x 955 x 858mm (30.1 x 37.6 x 33.8Z")
Weight 102kg (225lb)
Operating temperature 5 to 40C (41 to 104F)
Operating humidity 35 to 80% (no condensation)
Included items Handy panel, power cord, tool sensor, sensor cable, nut, nut wrench, wrench, hexagonal wrenches, Roland Software CD-ROM, SRP Player CD-ROM, User's Manual, Roland Software Guide, SRP Player Installation and Setup Guide, and NC Code Reference Manual

* When the T-slot table is installed, length is 297 mm (11.7 in.).
  When the ZCL-540 is installed, the X-axis travels of the MDX-540 are as follows.
     • Standard table, no ATC unit: 285 mm (11.2 in.)/325 mm (12.7 in.) (with expanded X-axis travel)
     • Standard table, ATC unit present: 270 mm (10.6 in.)/325 mm (12.7 in.) (with expanded X-axis travel)
     • T-slot table, no ATC unit: 218 mm (8.5 in.)/258 mm (10.1 in.) (with expanded X-axis travel)
     • T-slot table, ATC unit present: 203 mm (7.9 in.)/258 mm (10.1 in.) (with expanded X-axis travel)
